Low Voltage Distribution Transformer, 3-Phase, 9kVA, 480D/208Y-120V

Documentation & Downloads

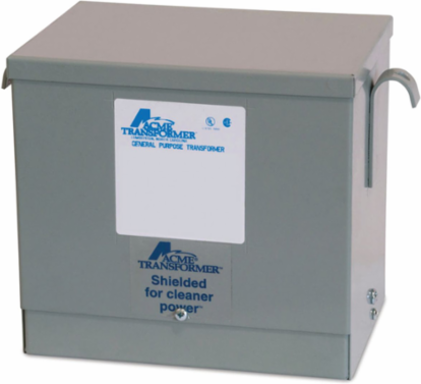

Acme Electric T2A533101S Low Voltage Distribution Transformer, 3-Phase, 9kVA, 480D/208Y-120V

MPN: T2A533101S
UPC: 047503733608
PPN: HBL-T2A533101S
UNSPSC: 39121001

CAD

$3375.09

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 9kVA

Features

Quiet operation with sound levels below NEMA standards
Electrostatic shield for enhanced protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin: Mexico

CSA Standard: C22.2 No. 47

kVA: 9.0

Product Category: Dry Type Distribution Transformer

Secondary Voltage: 208Y/120 V

Frequency Rating: 60 Hz

Length: 11.52 in

Primary Voltage: 480D V

UL Insulation Class: 180°C

Weight: 180 lb.

Mounting Type: Wall

ARRA Compliant: Contact Manufacturer

Freight Class Code: 06342001

Image Actual Or Representative: R

Sub Class Code: D10D100

Winding Material: AL

Base Unit of Measure: EA

Carton - SCC-14 Next Lower Level Sub Pack: 00047503733608

Pallet Length: 40.000 in

Pallet Width: 40.000 in

BNFC Taps2

Dimensions11.52 in x 17.77 in x 14.03 in

Max Temperature Rise115 Degrees Celsius

Product TypeDry Type Distribution Transformer

Taps % Steps5.0%

Height14.03 in

MountingWall

Width17.77 in

UL StandardUL 506

Material typeZFIN

Nema RatingNEMA 3R

Class CodeD10

Harmonization Code8504320000

Stock IndicatorS - Shelf Stock

Electrostatic ShieldShielded

ConstructionEncapsulated

BOX SIZE18.000x15.000x15.000 (in)

Pallet Height23.000 in

Pallet Weight727.000 lb.

NAICS Code335311

Certifications

Buy American Compliant: Contact Manufacturer
