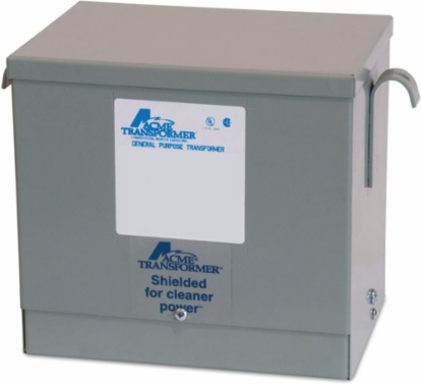

Acme Electric T2A533401S Low Voltage Distribution Transformer 9kVA 480V-240V-120V Wall Mount
Acme Electric T2A533401S Low Voltage Distribution Transformer 9kVA 480V-240V-120V Wall Mount
- MPN: T2A533401S
- UPC: 047503733806
- PPN: HBL-T2A533401S
- UNSPSC: 39121001
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3068.26/ EA
Description
Low Voltage Distribution Transformer - Three Phase, 480Δ - 240Δ120V, 9kVA
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Specifications
Specifications
- BNFC Taps
- 2
- Country of Origin
- MX
- Dimensions
- 11.52 in x 17.77 in x 14.03 in
- kVA
- 9.0
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 240D 120 V
- Frequency Rating
- 60 Hz
- Length
- 11.52 in
- Primary Voltage
- 480D V
- UL Insulation Class
- 180°C
- Weight
- 180 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- R
- Sub Class Code
- D10D100
- Winding Material
- AL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503733806
- Pallet Length
- 40.000 in
- Pallet Width
- 40.000 in
Buy American CompliantContact Manufacturer
CSA StandardC22.2 No. 47
Each - Width17.77 in
Max Temperature Rise115 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps5.0%
Height14.03 in
MountingWall
Width17.77 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorS - Shelf Stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE18.000x15.000x18.000 (in)
Pallet Height23.000 in
Pallet Weight742.000 lb.
