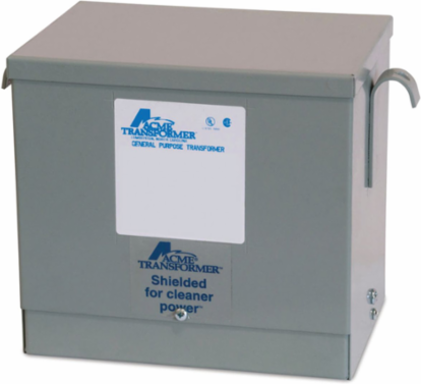

Acme Electric T2A533601S Low Voltage Distribution Transformer 9kVA 240D/208Y-120V Wall Mount

MPN: T2A533601S
UPC: 047503733905
PPN: HBL-T2A533601S
UNSPSC: 39121001

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Low Voltage Distribution Transformer - Three Phase, 240Δ - 208Y/120V, 9kVA

Features

Quiet operation with sound levels below NEMA standards
Electrostatic shield for enhanced protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
CSA Standard	C22.2 No. 47
kVA	9.0
Product Category	Dry Type Distribution Transformer
Secondary Voltage	208Y/120 V
Frequency Rating	60 Hz
Length	11.52 in
Primary Voltage	240D V
UL Insulation Class	180°C
Weight	180 lb.
Mounting Type	Wall
ARRA Compliant	Contact Manufacturer
Freight Class Code	06342001
Image Actual Or Representative	R
Sub Class Code	D10D100
Winding Material	AL
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00047503733905
Pallet Length	40.000 in
Pallet Width	40.000 in

BNFC Taps	2
Dimensions	11.52 in x 17.77 in x 14.03 in
Max Temperature Rise	115 Degrees Celsius
Product Type	Dry Type Distribution Transformer
Taps % Steps	5.0%
Height	14.03 in
Mounting	Wall
Width	17.77 in
UL Standard	UL 506
Material type	ZFIN
Nema Rating	NEMA 3R
Class Code	D10
Harmonization Code	8504320000
Stock Indicator	S - Shelf Stock
Electrostatic Shield	Shielded
Construction	Encapsulated
BOX SIZE	18.000x15.000x18.000 (in)
Pallet Height	23.000 in
Pallet Weight	738.000 lb.
NAICS Code	335311
