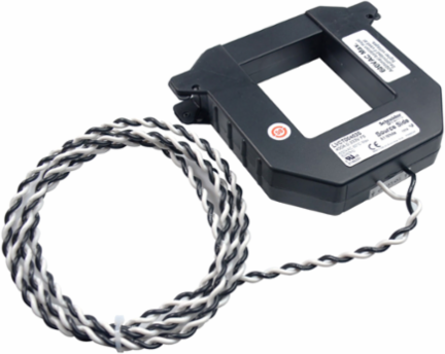

Schneider Electric LVCT00603S Split-Core Current Transformer 600A 0.333V Output 62mm x 132mm
- MPN: LVCT00603S
- PPN: SCH-LVCT00603S
CAD
$192.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This low-voltage split-core current transformer is part of PowerLogic BCPM (Branch Circuit Power Meter). It is Ideal for retrofit applications with Schneider Electric energy meters which accept low voltage current transducer input It is rated for a 600A circuit. 0.333 V output, size 3. Split core opening is 62 mm x 132 mm.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 5.2 in
- Country of Origin
- Brazil, France, Mexico, Sweden, United States
Width5.94 in
Depth30 mm
Complementary Attributes
- Line Rated Current
- 600 A
Important Information Attributes
- Product Destination
- BCPM, BCPMSC, Enercept, iEM3000, EM3500, EM4200, EM4900
- Local Publishable Date
- 2025-10-03
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- No
- Weee Product Category
- 5
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2105
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Compatibility Code
- LVCT
- Device Short Name
- LVCT
- Energy Efficiency Optimized
- False
- Network Frequency
- 50/60 Hz
- Product Or Component Type
- current transformer
- Range Of Product
- PowerLogic
- Sustainable Packaging
- No
- Height Nominal
- internal: 73 mm
- Width Nominal
- internal: 62 mm
- Certificate Agency
- UL 61010
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504314035
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Current Transformer Typesplit core balance
Electrical Connectioncable 1.8 m 18 AWG) 600 V
Measurement Accuracy1 % 10...100 %
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePowerLogic
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Usefulexternal: 132 mm
Width Realexternal: 151 mm
Accessory / Separate Part Categorymeasurement accessory
Package Weight(Lbs)864.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -15-60 °C, -15-60 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 95-95 %
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- current transformer
Range Of ProductPowerLogic
ETIM
- ETIM 8
- EC002048
ETIM 9EC002048
Output Attributes
- Output Voltage
- 0.333 V
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
