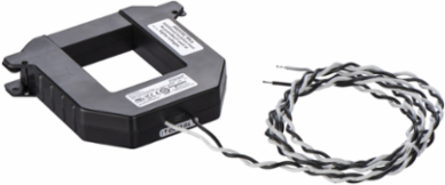

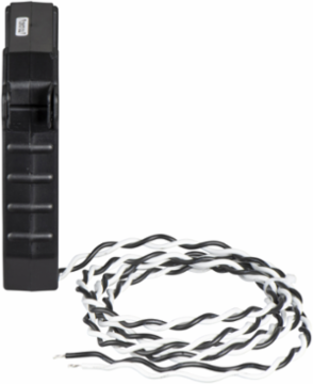

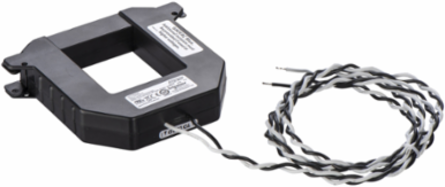

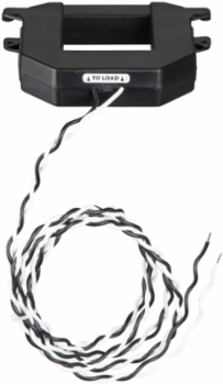

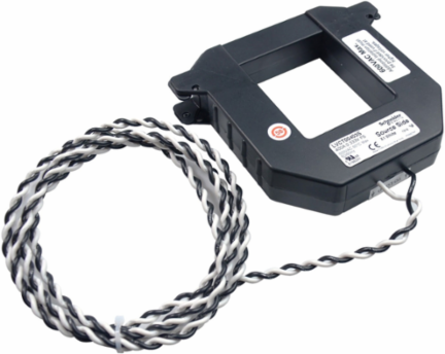

Schneider Electric LVCT00403S Split-Core Current Transformer 400A 0.333V 62mm x 132mm
- MPN: LVCT00403S
- PPN: SCH-LVCT00403S
CAD
$181.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

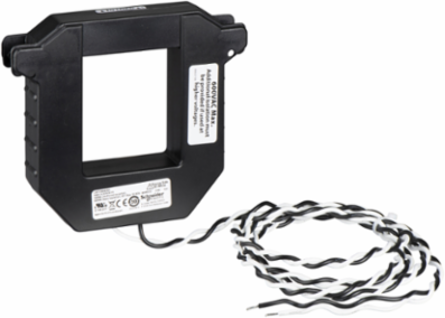

This low-voltage split-core current transformer is part of PowerLogic BCPM (Branch Circuit Power Meter). It is Ideal for retrofit applications with Schneider Electric energy meters which accept low voltage current transducer input It is rated for a 400A circuit. 0.333 V output, size 3. Split core opening is 62 mm x 132 mm.
Documentation & Downloads
Specifications
Key Specifications
- Network Frequency
- 50/60 Hz
- Electrical Connection
- cable 1.8 m AWG 18) 600 V
- Product Or Component Type
- current transformer
- Output Voltage
- 0.333 V
- Current Transformer Type
- split core balance
Product DestinationBCPM || BCPMSC || Enercept || iEM3000 || EM3500 || EM4200 || EM4900
Accessory / Separate Part Categorymeasurement accessory
RangePowerLogic
[In] Rated Current400 A
Device Short NameLVCT
Complementary
- Range Compatibility
- PowerLogic PowerLogic BCPM BCPMA multi-circuit energy meter || PowerLogic PowerLogic BCPM BCPMB multi-circuit energy meter || PowerLogic PowerLogic BCPM BCPME multi-circuit energy meter || PowerLogic PowerLogic BCPMSC BCPMSCA multi-circuit energy meter || PowerLogic PowerLogic BCPMSC BCPMSCB multi-circuit energy meter || PowerLogic PowerLogic BCPMSC BCPMSCE multi-circuit energy meter || PowerLogic PowerLogic EM3500 EM3502 energy meter || PowerLogic PowerLogic EM3500 EM3550 energy meter || PowerLogic PowerLogic EM3500 EM3555 energy meter || PowerLogic PowerLogic EM3500 EM3560 energy meter || PowerLogic PowerLogic EM3500 EM3561 energy meter || PowerLogic PowerLogic EM4200 EM4235 energy meter || PowerLogic PowerLogic EM4200 EM4236 energy meter || PowerLogic PowerLogic EM4900 EM4904 multi-circuit energy meter || PowerLogic PowerLogic EM4900 EM4908 multi-circuit energy meter || PowerLogic PowerLogic EM4900 EM4914 multi-circuit energy meter || PowerLogic PowerLogic EM4900 EM4928 multi-circuit energy meter || Acti 9 Acti9 iEM3000 iEM3455 energy meter || Acti 9 Acti9 iEM3000 iEM3465 energy meter
Measurement Accuracy1 % 10...100 %
Environment
- Ambient Air Temperature For Operation
- -15-60 °C
- Depth
- 30 mm
- Relative Humidity
- 95-95 %
- Height
- internal 73 mm || external 132 mm
Net Weight0.58 kg
Ambient Air Temperature For Storage-40-70 °C
Widthinternal 62 mm || external 151 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
