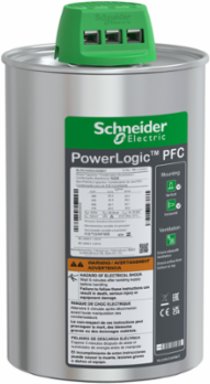

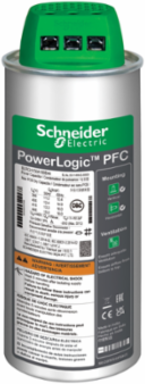

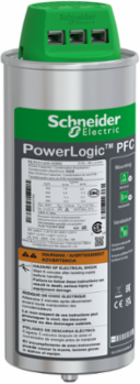

Schneider Electric BLRCH292A350B57 heavy duty PowerLogic PFC Capacitor, 29.2/35 kvar - 575 V - 50/60Hz
- MPN: BLRCH292A350B57
- PPN: SCH-BLRCH292A350B57
- UNSPSC: 39121014
CAD
$667.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
VarPlus Can capacitor are a reliable and flexible solution for power factor correction in stringent operating conditions. These capacitors are particularly used for higher voltage disturbances or when a few non-linear loads are present. The rated current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 29.2 kVar at 575V AC, 50 Hz. Fastening assured by a ClampTite terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The case product weight is 3.2 kg.
Features
- Low voltage PFC Capacitor for stringent operating conditions
- Heavy Duty application with higher non-linear loads
- Best in class performance, safety and reliability
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | India, United States |
|---|
| Weight | 3200 g |
|---|
Complementary Attributes
| Maximum Permissible Voltage | 1.1 x Un 8 hours over 24 hours) |
|---|---|
| Rated Voltage | 575-575 V AC 50/60 Hz |
| Maximum Switching Operation Per Year | 7000 |
|---|---|
| Imp Maximum Permanent Current | 1.8 x In |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Dielectric Losses | < 0.2 W/kvar, < 0.2 W/kvar |
| Network Harmonic Content | <= 20 %, <= 20 % |
| Certificate Agency | IEC 60831-2, IEC 60831-1 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 8 kg CO2 eq., 7.612530816714922 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 41 kg CO2 eq., 41.2519600468995 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | DPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1612005_V3 |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1903 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | YES_SSI2Yes |
| Tier | 2 |
| Function Option | Standard |
| Diameter | 136 mm |
| Energy Efficiency Optimized | False |
| Mounting Mode | upright/horizontal |
| Power Losses | < 0.5 W/kVAr< 0.5 W/kVAr |
| Product Name | PowerLogic PFC Capacitor |
| Range | PowerLogic |
| Reactive Power Rating | 29.2 kvar 575 V 50 Hz35 kvar 575 V 60 Hz |
| Series Name | HDuty |
| Software Version | v6.2 |
| Temperature Class | D |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2023-02 |
| Height Nominal | 242 mm |
| Customs Code | 8532100000 |
| Functional Unit Description | To supply the rated reactive energy at rated supply voltage both in 50 & 60Hz to improve the power factor in the networks according to the IEC 60831- Part 1 &2 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 20 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Impregnation Material | non-PCB dry PUR resin, biodegradable |
| Voltage Test | <= 660 V - 3 kV AC between terminal and container 10 s, <= 660 V - 3 kV AC between terminal and container 10 s, <= 660 V - 3 kV AC between terminal and container 10 s, <= 660 V - 3 kV AC between terminal and container 10 s, >= 660 V - 6 kV AC between terminal and container 10 s, >= 660 V - 6 kV AC between terminal and container 10 s, >= 660 V - 6 kV AC between terminal and container 10 s, >= 660 V - 6 kV AC between terminal and container 10 s2.15 x Un AC between terminals 10 s, <= 660 V - 3 kV AC between terminal and container 10 s, <= 660 V - 3 kV AC between terminal and container 10 s, >= 660 V - 6 kV AC between terminal and container 10 s |
| Carbon Footprint Of The Distribution Phase A4 | 4.847383540837868, 5 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.04234213734349366, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 6 kg CO2 eq., 5.764432863474031 |
| Local Publishable Date | 2025-07-24 |
| Device Type | Power Factor Correction - LV capacitor |
| Traceability | No |
| Service Catalog Item | Spare part |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | e |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Dielectric Material | metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut) |
| Inrush Current | 250 x In |
| Network Frequency | 50/60 Hz |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | heavy duty capacitor |
| Range Of Product | PowerLogic |
| Returnability | Yes |
| Service Life In Hours | 130000 h |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 60 kg CO2 eq. |
| Connections Terminals | ClampTite terminal |
| Data Source | extrapolated product |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 5.913 |
Environment Attributes Main
| China Rohs Regulation | X, Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 59.51864940526981 |
| Circularity Profile | ENVEOLI1612005_V3 |
| Eu Rohs Directive | Compliant |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1612005EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -25-55 °C-25-55 °C |
| Environmental Disclosure | ENVPEP1612005EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 95-95 % |
| Pep Verification Date | 2025-03-20 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | heavy duty capacitor |
|---|
| Range Of Product | PowerLogic |
|---|
ETIM
| ETIM 8 | EC001516 |
|---|---|
| ETIM 10 | EC001516 |
| ETIM 9 | EC001516 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
