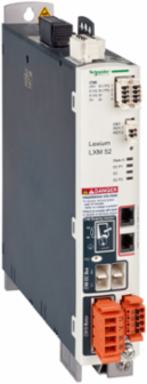

Schneider Electric LXM52DD12C41000 Lexium 52 Servo Drive 3A/12A, IP20, 1.8kg, 0.9kW
- MPN: LXM52DD12C41000
- PPN: SCH-LXM52DD12C41000
CAD
$4697.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 52 & Motors range, an offer of standalone servo drives for PacDrive 3. The single drive features SERCOS III physical interface. It offers 4 digital/4 touch probe inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 208V to 480V, a continuous output current of 3A and a continuous power of 0.9kW. It is furnished with connector terminals for electrical connection. It is an IP20 rated product. It weighs 1.8kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE and UL. It meets EN/IEC 61800-5-1, UL 508C and EN/IEC 61800-3 standards. This product is compatible with servo motor SH3 (55mm, 3 motor stacks), servo motor SH3 (70mm, 1 motor stack) and servo motor SH3 (70mm, 2 motor stacks). Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France, Indonesia, Sweden, United States |
|---|
| Depth | 217 mm |
|---|
Communications & Management Attributes
| Communication Interface | SERCOS III, Integrated |
|---|
Complementary Attributes
| Line Rated Current | 3.0 A |
|---|---|
| Maximum Current Irms | 12.0 A |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
| Maximum Ambient Air Temperature For Operation | 45.0 °C |
|---|---|
| Maximum Operational Altitude | 3000.0 m |
Important Information Attributes
| Persona Type Ids | EU, OM |
|---|---|
| Contact Bounce Time | > 1 ms compliment of STO_A, compliment of STO_B, > 1 ms compliment of STO_A, compliment of STO_B> 1 ms compliment of STO_A, compliment of STO_B, > 1 ms compliment of STO_A, compliment of STO_B |
| Nominal Voltage | 208 V three phase, 400 V three phase |
| Tightening Torque | CN1 0.68-0.68 N.m, CN10 0.68-0.68 N.m |
| Carbon Footprint Of The Distribution Phase [A4] | 0.2967505403, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0138028999, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 1 562 kg CO2 eq., 1561.6286344208 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI110605EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Component Name | LXM52 |
| Derating Altitude Scale | 80.0 m |
| Device Short Name | LXM 52 |
| Maximum Operational Altitude | 3000.0 m |
| Nominal Power | 0.9 kW |
| Phase | three phase |
| Product Or Component Type | single drive |
| Returnability | Yes |
| Software Version | EIME v5.8.1 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 1 584 kg CO2 eq. |
| Pep Code | ENVPEP110705EN |
| Pep Verification Date | 2020-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 3187.3887 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Width Nominal | 48 mm |
| Maximum [In] Rated Current | 3.0 A |
| Package Weight(Lbs) | 2.316 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer |
|---|---|
| Electrical Connection | terminal 0.75...5.3 mm², 18 AWG...10 AWG CN1), terminal 0.75...5.3 mm², 18 AWG...10 AWG CN10) |
| Supply Voltage | 200-240 V three phase, 380-480 V three phase |
| Certificate Agency | UL, CE |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 1.0737752161 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 21 kg CO2 eq., 21.1614913545 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 3 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Continuous Power | 1.6 kW |
| Derating Altitude Start | 1000.0 m |
| Environmental Characteristic | 3K3 conforming to IEC 60721-3-3 |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
| Overvoltage Category | III |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | PacDrive 3 |
| Shock Resistance | 100 m/s² IEC 60721-3-3 |
| Supply Frequency | 50...60 Hz - 5...5 % |
| Switching Frequency | 8 kHz |
| Vibration Resistance | 10 m/s² conforming to IEC 60721-3-3 |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Indonesia |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Height Nominal | 270 mm |
| [Us] Rated Supply Voltage | 480 V208...480 V - 15...10 % |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109160 |
Environment Attributes Main
| Product Compatibility | servo motor SH3 100 mm, 2 optimized in terms of high torqueservo motor MH3 70 mm, 3 optimized in terms of torque and speed, servo motor MH3 100 mm, 1 optimized in terms of torque and speed, servo motor SH3 55 mm, 3 optimized in terms of torque and speedservo motor SH3 70 mm, 1 optimized in terms of torque and speed, servo motor SH3 70 mm, 2 optimized in terms of torque and speed, servo motor SH3 70 mm, 3 optimized in terms of high torque, servo motor SH3 100 mm, 1 optimized in terms of high torque, servo motor MH3 70 mm, 2 optimized in terms of torque and speed, servo motor SHS 100 mm, 1 optimized in terms of torque and speed |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-50 °C |
| Environmental Disclosure | ENVPEP110705EN |
| Ip Degree Of Protection | IP20 IEC 60721-3-3 |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % |
| Pep Verification Date | 2020-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 1584.1744544316 |
| Circularity Profile | ENVEOLI110605EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP110705EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Phase | three phase |
|---|---|
| Range Of Product | PacDrive 3 |
| Product Or Component Type | single drive |
|---|
ETIM
| ETIM 8 | EC001857 |
|---|
| ETIM 9 | EC001857 |
|---|
Output Attributes
| Output Current 3s Peak | 12 A, 12.0 A |
|---|---|
| Discrete Output Voltage | 24 V DC |
| Continuous Output Current | 3 A 8 kHz |
|---|---|
| Number Of Outputs | 2 digital |
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Number Of Inputs | 4 digital, 4 touch probe |
|---|
| Discrete Input Voltage | 24 V DC |
|---|
