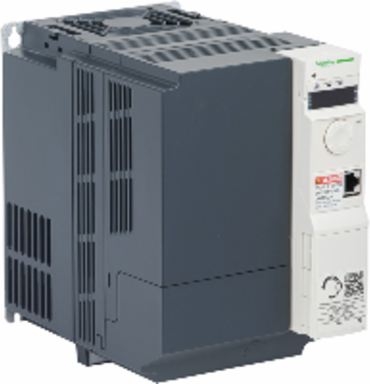

Schneider Electric ATV32HU75N4 Variable speed drive ATV32 - 7.5 kw - 400 V - 3 phase - with heat sink
- MPN: ATV32HU75N4
- UPC: 785901632627
- PPN: SCH-ATV32HU75N4
CAD
$1612.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Variable speed drive ATV32 - 7.5 kw - 400 V - 3 phase - with heat sink
Documentation & Downloads
Specifications
Complementary
- Line current
- 26.5 A 380 V 3 phases 7.5 kW 10 hp
- Apparent power
- 22.9 kVA 500 V 3 phases 7.5 kW 15 hp
- Maximum transient current
- 25.5 A 60 s 7.5 kW 10 hp
- Nominal switching frequency
- 4 kHz
- Speed range
- 1...100 asynchronous motor in open-loop mode
- Torque accuracy
- +/- 15 %
- Asynchronous motor control profile
- Voltage/frequency ratio, 2 points
- Asynchronous motor control profile
- Flux vector control without sensor - Energy Saving, NoLoad law
- Asynchronous motor control profile
- Voltage/frequency ratio - Energy Saving, quadratic U/f
- Regulation loop
- Adjustable PID regulator
- Motor slip compensation
- Not available in voltage/frequency ratio (2 or 5 points)
- Local signalling
- 1 LED red drive fault
- Local signalling
- 1 LED green CANopen run
- Noise level
- 43 dB 86/188/EEC
- Electrical connection
- Screw terminal 6...16 mm² AWG 8...AWG 6 power supply
- Electrical connection
- Screw terminal 0.5...1.5 mm² AWG 18...AWG 14 control
- Tightening torque
- 10.62 lbf.in (1.2 N.m) 10.6 lb/ft motor/braking resistor
- Supply
- Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %
- Analogue input type
- Current AI3 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
- Analogue input type
- Voltage AI1 0...10 V DC 30000 Ohm 10 bits
- Sampling duration
- 2 ms AI1, AI2, AI3 analog
- Response time
- 2 ms R1A, R1B, R1C relay
- Accuracy
- +/- 2 % AO1 for a temperature of -10...60 °C
- Accuracy
- +/- 0.5 % AI1, AI2, AI3 for a temperature of 25 °C
- Linearity error
- +/- 0.3 % AO1
- Analogue output number
- 1
- Analogue output type
- Software-configurable current AO1 0...20 mA 800 Ohm 10 bits
- Discrete output type
- Logic LO
- Discrete output type
- Configurable relay logic R1A, R1B, R1C NO/NC 100000 cycles
- Maximum switching current
- 5 A 30 V DC resistive cos phi = 1 R2
- Maximum switching current
- 2 A 30 V DC inductive cos phi = 0.4 R1, R2
- Maximum switching current
- 4 A 30 V DC resistive cos phi = 1 R1
- Discrete input number
- 7
- Discrete input type
- Switch-configurable PTC probe LI6 24...30 V DC
- Discrete input type
- Programmable (sink/source) LI1...LI4 24...30 V DC level 1 PLC
- Discrete input logic
- Negative logic (sink) LI1...LI6 > 19 V
- Acceleration and deceleration ramps
- U
- Acceleration and deceleration ramps
- Deceleration ramp automatic stop DC injection
- Acceleration and deceleration ramps
- Linear
- Braking to standstill
- By DC injection
- Protection type
- Short-circuit between motor phases drive
- Protection type
- Overcurrent between output phases and earth drive
- Communication port protocol
- CANopen
- Type of connector
- 1 RJ45 Modbus/CANopen on front face
- Transmission frame
- RTU Modbus
- Number of addresses
- 1...247 Modbus
- Method of access
- Slave CANopen
- Electromagnetic compatibility
- Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3
- Electromagnetic compatibility
- Electrical fast transient/burst immunity test level 4 IEC 61000-4-4
- Electromagnetic compatibility
- 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5
- Height
- 12.13 in (308 mm)
- Product weight
- 16.53 lb(US) (7.5 kg)
- Option card
- Communication card Ethernet/IP
- Option card
- Communication card CANopen open style
- Functionality
- Mid
Line current18.7 A 500 V 3 phases 7.5 kW 10 hp
Nominal output current17 A 4 kHz 500 V 7.5 kW 10 hp
Speed drive output frequency0.5...599 Hz
Switching frequency2...16 kHz adjustable
Speed accuracy+/- 10 % of nominal slip 0.2 Tn to Tn
Transient overtorque170...200 %
Asynchronous motor control profileVoltage/frequency ratio, 5 points
Asynchronous motor control profileFlux vector control without sensor, standard
Synchronous motor control profileVector control without sensor
Motor slip compensationAutomatic whatever the load
Motor slip compensationAdjustable 0...300 %
Local signalling1 LED red CANopen error
Local signalling1 LED red drive voltage
InsulationElectrical between power and control
Electrical connectionRemovable screw terminals 2.5...16 mm² AWG 12...AWG 6 motor/braking resistor
Tightening torque10.62 lbf.in (1.2 N.m) 10.6 lb/ft power supply
Tightening torque4.42 lbf.in (0.5 N.m) 4.4 lb/ft control
Analogue input number3
Analogue input typeBipolar differential voltage AI2 +/- 10 V DC 30000 Ohm 10 bits
Sampling duration2 ms AO1 analog
Response time2 ms R2A, R2C relay
Response time8 ms +/- 0.7 ms LI1...LI6 logic
Accuracy+/- 1 % AO1 for a temperature of 25 °C
Accuracy+/- 0.2 % AI1, AI2, AI3 for a temperature of -10...60 °C
Linearity error+/- 0.2...0.5 % of maximum value AI1, AI2, AI3
Analogue output typeSoftware-configurable voltage AO1 0...10 V 470 Ohm 10 bits
Discrete output number3
Discrete output typeConfigurable relay logic R2A, R2B NO 100000 cycles
Minimum switching current5 mA 24 V DC configurable relay logic
Maximum switching current5 A 250 V AC resistive cos phi = 1 R2
Maximum switching current2 A 250 V AC inductive cos phi = 0.4 R1, R2
Maximum switching current3 A 250 V AC resistive cos phi = 1 R1
Discrete input typeSafe torque off STO 24...30 V DC 1500 Ohm
Discrete input typeProgrammable as pulse input 20 kpps LI5 24...30 V DC level 1 PLC
Discrete input logicPositive logic (source) LI1...LI6 11 V
Acceleration and deceleration rampsS
Acceleration and deceleration rampsCUS
Acceleration and deceleration rampsDeceleration ramp adaptation
Acceleration and deceleration rampsRamp switching
Protection typeThermal protection drive
Protection typeOverheating protection drive
Protection typeInput phase breaks drive
Communication port protocolModbus
Physical interface2-wire RS 485 Modbus
Type of polarizationNo impedance Modbus
Number of addresses1...127 CANopen
Electromagnetic compatibilityVoltage dips and interruptions immunity test IEC 61000-4-11
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 IEC 61000-4-2
Electromagnetic compatibilityConducted radio-frequency immunity test level 3 IEC 61000-4-6
Width5.91 in (150 mm)
Depth9.13 in (232 mm)
Option cardCommunication card Profibus DP V1
Option cardCommunication card DeviceNet
Option cardCommunication card CANopen daisy chain
Specific applicationOther applications
Main
- Commercial Status
- Commercialised
- Product or component type
- Variable speed drive
- Product destination
- Synchronous motors
- Assembly style
- With heat sink
- EMC filter
- Class C2 EMC filter integrated
- [Us] rated supply voltage
- 380...500 V - 15...10 %
- Supply frequency
- 50...60 Hz - 5...5 %
- Motor power kW
- 7.5 kW 380...500 V
Range of productAltivar 32
Product destinationAsynchronous motors
Product specific applicationComplex machines
Component nameATV32
Phase3 phases
Supply voltage limits323...550 V
Network frequency limits47.5...63 Hz
Motor power hp10 hp 380...500 V
Environment
- Standards
- EN 55011 class A group 1
- Standards
- EN 61800-3 environments 2 category C2
- Standards
- EN/IEC 61800-5-1
- Product certifications
- C-Tick
- Product certifications
- NOM 117
- Marking
- CE
- IP degree of protection
- IP20 EN/IEC 61800-5-1
- Vibration resistance
- 1 gn 13...200 Hz EN/IEC 60068-2-6
- Relative humidity
- 5...95 % without dripping water IEC 60068-2-3
- Ambient air temperature for operation
- 122...140 °F (50...60 °C) with derating factor
- Ambient air temperature for storage
- -13...158 °F (-25...70 °C)
- Operating position
- Vertical +/- 10 degree
StandardsEN 61800-3 environments 1 category C2
StandardsEN/IEC 61800-3
Product certificationsCSA
Product certificationsGOST
Product certificationsUL
Pollution degree2 EN/IEC 61800-5-1
Vibration resistance1.5 mm peak to peak 3...13 Hz EN/IEC 60068-2-6
Shock resistance15 gn 11 ms EN/IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Ambient air temperature for operation14...122 °F (-10...50 °C) without derating
Operating altitude3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
Ordering and Shipping Details
- Category
- 22153 - ATV312 / ATV32 (10 THRU 30 HP)
- GTIN
- 00785901632627
- Product availability
- Stock - Normally stocked in distribution facility
- Country of origin
- ID
Discount ScheduleCP4B
Nbr. of units in pkg.1
ReturnabilityY
Offer Sustainability
- Sustainable offer status
- Not Green Premium product
- RoHS (date code: YYWW)
- Schneider Electric declaration of conformity
RoHS (date code: YYWW)Compliant - since 1012 -
Contractual Warranty
- Warranty period
- 18 months
