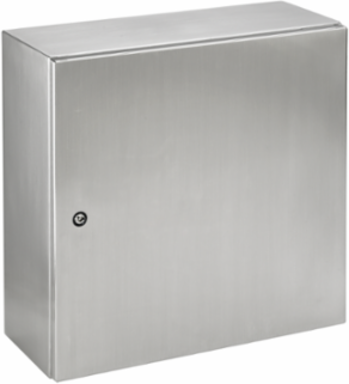

Nvent Hoffman M600600350GSS GL66 Wallmount, 600x600x350mm, Type 4X, Stainless Steel 304, IP66
Nvent Hoffman M600600350GSS GL66 Wallmount, 600x600x350mm, Type 4X, Stainless Steel 304, IP66
- MPN: M600600350GSS
- UPC: 783510267957
- PPN: HOF-M600600350GSS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3267.38/ EA
Description
This GL66 stainless steel wallmount uses quarter turn latching with 3mm double-bit insert. This GL66 Wallmount 1/4 Turn Latch Type 4X, M600600350GSS item measures 600x600x350mm with a material of SS 304, Brushed.
Features
- Removable hinges and double-bit latch insert
- Dimensions in millimeters
- Minimum-width body flange provides maximum body opening
- Pre-cut gland plate openings in the bottom of the enclosure with a seal to ensure protection
- External formed 90 degree body flange
- Door opens 210 degrees
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Type 316 stainless steel hinge pins
- Corner-formed doors are easily removed by pulling clip-style hinge pins
- Quarter-turn latches furnished with 3mm double-bit insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Grounding stud on the body
- Full-sized galvanized steel back panel included
- Bonding provision on the door
- Furnished hardware kit includes: gasketed gland plates and hardware, grounding hardware and sealing washers for wallmounting holes
- Installation instructions
- Three-point latching on enclosures 1000 mm and taller
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #3
- Panel Size (D x E)
- 21.85 x 21.85
- Weight
- 59
- Material
- Stainless Steel
Height (H)600
Depth (D)350
Product FamilyGL66
Thickness (T)2
NEMA Rating12 Indoor, dust-resistant
IP RatingIP66
Size600x600x350mm
