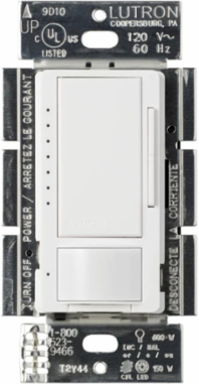

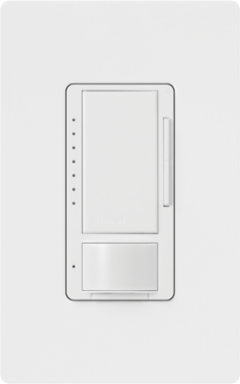

Lutron MSCL-OP153MH-WHC Maestro LED+ Motion Sensor Dimmer Switch, 600W Incandescent/150W LED, White
- MPN: MSCL-OP153MH-WHC
- UPC: 784276055239
- PPN: LUT-MSCL-OP153MH-WHC
- UNSPSC: 39122236
CAD
$56.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Lutron Maestro LED+ Motion Sensor Dimmer Switch works just like a Lutron Maestro dimmer, with the addition of Lutron’s advanced motion sensing technology to automatically and gradually turn the lights on and off. The LED+ Motion Sensor Dimmer Switch is rated for 150W dimmable LED or 600W Incandescent/Halogen bulbs. Install in a single pole, 3-way with existing switch, or with Maestro companion dimmers (MA-R/MSC-AD) to dim from up to 9 locations. Use the raise/lower buttons to adjust the brightness for any activity or determine the preset level to ensure lights always turn on to your desired light level. The passive infrared (PIR) sensor, covered by a tamper resistant lens, detects heat from occupants moving and has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage). Equipped with smart ambient light detection (ALD), you can customize your sensing dimmer to detect daylight, so lights don't turn on when enough natural light is present in the room. Unlike other manufacturers, Lutron sensors use Cross Correlation Technology (XCT) to also detect fine motion, such as typing at a desk or reading a book – ensuring lights won’t turn off inadvertently when you’re still in the room. Easy button programming is available to customize both the dimmer and the sensor’s functions, such as timeout, occupied level and sensor mode. Lutron sensors have an adjustable timeout (1, 5, 15 or 30 minutes) to control how long the lights stay on after leaving the room. The occupied level is the brightness the sensor will turn on when motion is detected. Change the sensor to vacancy mode to meet Title 24 requirements: lights only turn on with a manual press of the tap switch but automatically turn off if the sensor no longer detects motion. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro C.L dimmer with an occupancy sensor. Controls CFL, LED, incandescent, and halogen load types. Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 3, 5, 15, or 30 minutes) and high/low sensitivity adjustment. Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level. Off warning fades lights to off over a period of 10 seconds. Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.). Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches

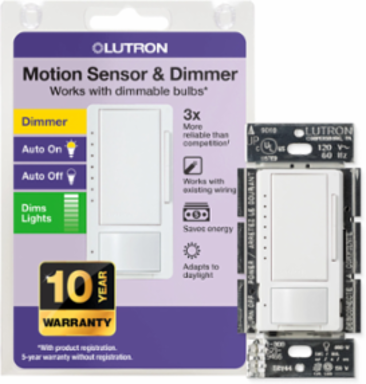

- Includes (1) Maestro LED+ Motion Sensor Dimmer Switch; Gloss Finish, Clamshell Packaging
- Rated for 150W dimmable LED or 600W Incandescent/Halogen bulbs; No Neutral or Ground required
- Screw Terminal or Push-in Installation; 120V
- Single Pole/Multi-location dimming with Lutron Maestro Companion dimmers (MA-R); compatible with an existing 3-way switch
- Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
- 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens

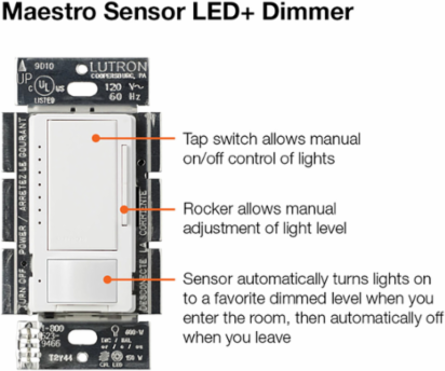

- Easy button programming mode available to customize dimmer and sensor functions such as timeout, occupied light level, and sensor mode
- Complies with Title 20/24 Section 110.9 for “automatic shutoff”
- Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough light is present in the room
- Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
- Passive infrared sensors that automatically control the lights in an area
- These sensors detect heat from occupants moving within an area to determine when the space is occupied
- Combines a Maestro LED+ dimmer with an occupancy sensor
- Controls CFL, LED, incandescent, and halogen load types
- Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view
- Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
- Can be set to auto-on/auto-off or manual-on/auto-off
- Adjustable timeout (1, 3, 5, 15, or 30 minutes) and high/low sensitivity adjustment
- Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level
- Off warning fades lights to off over a period of 10 seconds
- Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.)
- Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches
Documentation & Downloads
Specifications
Key Specifications
| Application | Lighting Control |
|---|---|
| Decorative Color | White |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Load | 600 W incandescent/halogen/140 W CFL/LED |
| Operating Temperature, Minimum | 32 F |
| Sensing Range, Minimum | 400 |
| Supply Voltage | 120 |
| Mounting | Wallbox |
| Aesthetic Finish | Glossy |
| Finish | Gloss |
| Body | Plastic |
|---|---|
| Enclosure | Plastic |
| Family Color | White |
| Operating Temperature, Maximum | 104 F |
| Sensing Range, Maximum | 900 |
| Sensor | Yes |
| Type | Occupancy sensor dimmer, multi-location/3-way/single-pole, clamshell packaging, for Canada |
| Sensing Range | 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage |
| Color | White |
| Operating Temperature | 32 to 104 F |
