Schneider Electric XVZ08 Universal Mounting Accessory, Harmony XV4/XV6/XVB7 Modular Tower Light, Plastic Magnetic Adapter, Grey
- MPN: XVZ08
- PPN: SCH-XVZ08
CAD
$86.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

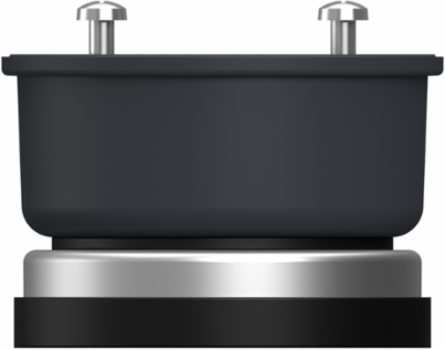

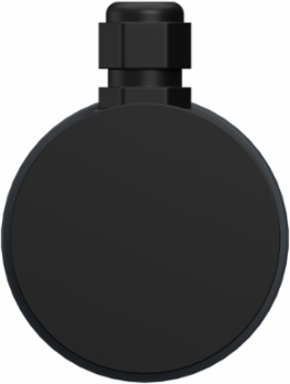

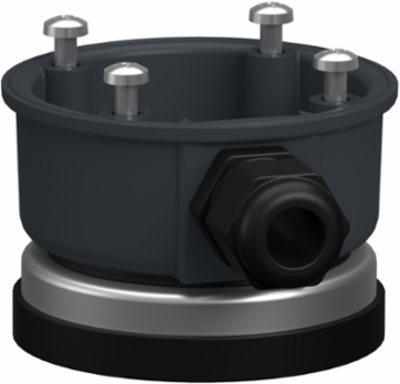

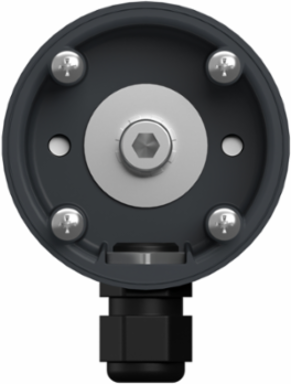

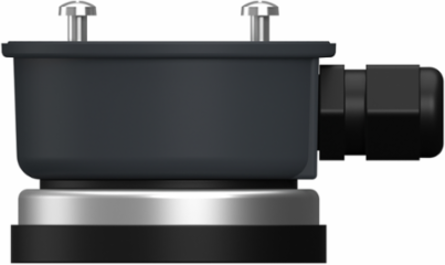

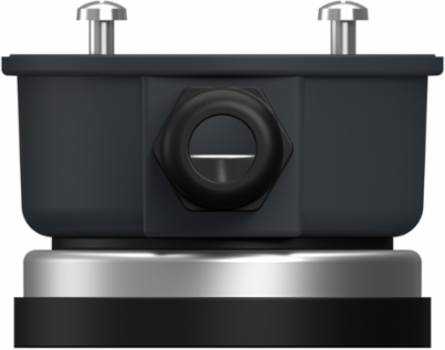

This magnetic adapter is part of the Harmony XVB7, XV6, and XV4 ranges, featuring modular tower lights designed for easy customer assembly. It is designed for easy mounting of a base module with side cable entry (fixing screws are included). The XVZ08 adapter is made of dark grey plastic and equipped with an M16 x 1.5 cable gland. It measures 46mm high and weighs 298g. This product comes with an IP65 rating. The adapter is compatible with the XVZ01, XVZ01Q, XVZ01W, XVZ11, XVZ02, and XVZ02Q fixing plates. The Harmony range of tower lights features a sleek design incorporating energy-efficient LEDs to maximize brightness while minimizing energy consumption.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia, United States
Physical Attributes
- Color
- dark grey
Important Information Attributes
- Accessory Type
- magnetic adapter
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.3028369262839862
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 3.6562050390916783
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2025-02-06
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2501029EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2445
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Cable Entry
- side entry
- Product Availability
- Stock - Normally stocked in distribution facility
- Provided Equipment
- Screws
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The major function of the Harmony XVB7 range of products is to offer optical or audio signalling to operators, technicians, supervisors and other people who are engaged in the work specifically to identify the various states or sequences of a machine or installation from a distance through 360° in life span of 10 years.This product will be active for 73% of the time with a power consumption of 8.4W and adhering to standards IEC 60947-5-1.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; Germany, DE
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Global, GLO
- Recyclability Potential In %
- 87
- Accessory / Separate Part Type
- magnetic adapter
- Package Weight(Lbs)
- 306.000 g
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]0.1060177696308591, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0016882376324347348, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Pre Comm Date2025-02-06
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Materialplastic
Product Or Component Typeaccessory
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2501029EN
Pep Verification Date2025-06-28
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal46 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8505907501
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2501029EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- UL type 12
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2501029EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Product CompatibilityXVB7....., XV6....., XV4.....
Recycled Metal Content At Cr Level0 %
Carbon Footprint4.066747972638958
Environmental DisclosureENVPEP2501029EN
Ip Degree Of ProtectionIP65
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-06-28
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- accessory
Provided EquipmentScrews
ETIM
- ETIM 8
- EC001259
ETIM 9EC001259
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
