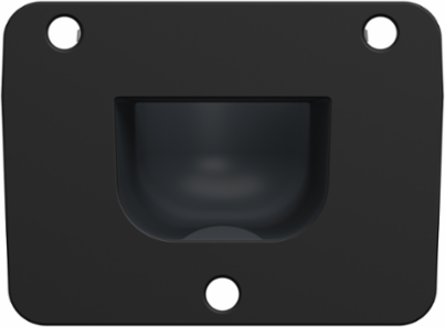

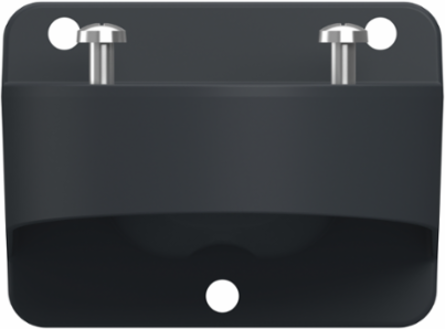

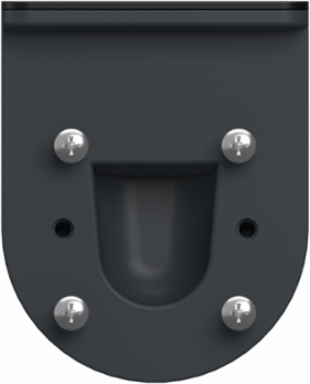

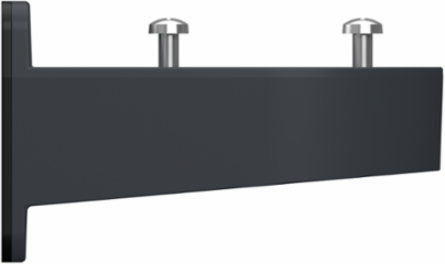

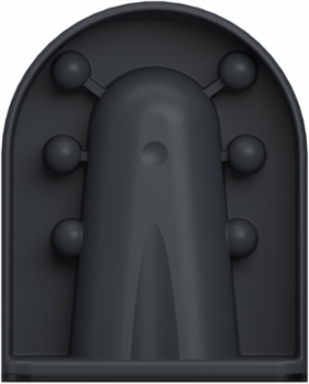

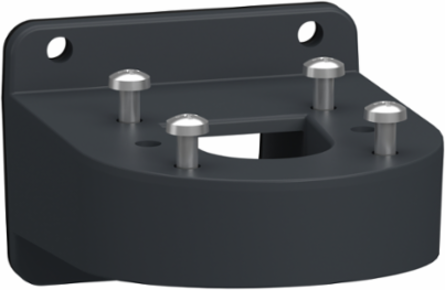

Schneider Electric XVZ09 Universal Mounting Accessory, Harmony XV6/XVB7 Modular Tower Light, Plastic Wall Mount Bracket, Grey
- MPN: XVZ09
- PPN: SCH-XVZ09
CAD
$44.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This wall mounting bracket is part of the Harmony XV6 and XVB7 ranges, featuring modular tower lights designed for easy customer assembly. It is designed to mount a tower light on vertical support (a gasket and four fixing screws are included). The XVZ09 bracket is made of dark grey plastic. It measures 87mm high and weighs 50g. It is impact, dust, water, and vibration resistant thanks to its IP66 rating, making it ideal for operation in harsh environments. This wall mounting bracket cannot be combined with L brackets XVZ100T and XVZ250T. The Harmony range of tower lights features a sleek design incorporating energy-efficient LEDs to maximize brightness while minimizing energy consumption.
Features
- The Schneider Electric XVZ09 is explicitly designed as a universal wall mounting bracket for the Harmony XV4, XV6, and XVB7 series modular tower lights. It provides a seamless physical fit for signaling units across multiple diameters (40mm, 60mm, and 70mm), eliminating compatibility guesswork and allowing you to standardize your mounting hardware across different machinery lines.
- This kit comes fully equipped with a dedicated sealing gasket and four heavy-duty fixing screws, eliminating the downtime spent sourcing secondary installation components. The smart side-entry cable design simplifies wiring routing, allowing field technicians to complete vertical surface installations quickly and securely.
- Engineered from high-grade, impact-resistant dark grey plastic, this compact 87mm bracket is built to absorb the constant structural vibrations common in automated manufacturing. Its lightweight 50g profile minimizes structural strain on thin enclosure walls while providing a rugged, industrial-grade foundation that ensures your indicator status lights stay upright and visible.
- Designed with modularity in mind, the XVZ09 seamlessly integrates with Schneider Electric s extended structural line, including the XVZ100T and XVZ250T aluminum L-brackets. This compatibility allows plant engineers to easily adapt light columns for extended visibility over tall machinery or around physical obstructions without replacing the core base unit.
