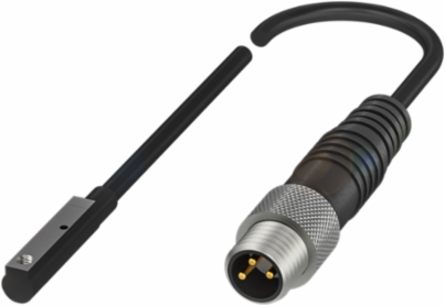

Balluff BMF 214K-PS-C-2A-SA2-S49-00,3 S49-00 Magnetic Field Sensor C-slot, 16.8mm x 2.9mm x 4.5mm, IP67

S49-00 Magnetic Field Sensor C-slot, 16.8mm x 2.9mm x 4.5mm, IP67
  • MPN: BMF 214K-PS-C-2A-SA2-S49-00,3
  • PPN: BAL-BMF00A2

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$58.36/ EA

Specifications

Specifications

Country of Origin
Hungary
Principle of operation
Magnetic field sensor
Cable
PUR, 0.3 m
Fastening detail
C-slot; SMC; Bimba; Schunk
Switching output
PNP Normally open (NO)
Operating voltage Ub
10...30 VDC
IP rating per IEC 60529
IP67
Dimension16.8 x 2.9 x 4.5 mm
ConnectionM8x1-Male, 3-pin
ApplicationOptimized response path especially suited for short-stroke cylinders.
Housing materialPA 12
Switching frequency7000 Hz
Ambient temperature-25...85 °C
Approval/ConformityCE; UKCA; cULus; WEEE
