Balluff

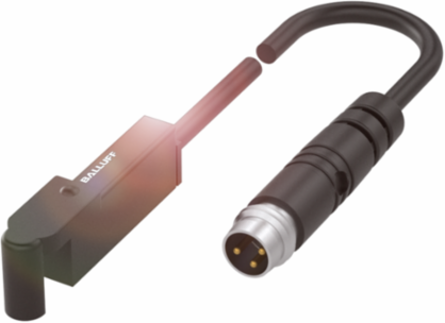

Balluff BMF 305K-PS-C-2-S49-00,2 Magnetic Field Sensor, 33.5 x 5 x 10.5 mm, IP67, 10...30 VDC

Magnetic Field Sensor, 33.5 x 5 x 10.5 mm, IP67, 10...30 VDC
  • MPN: BMF 305K-PS-C-2-S49-00,2
  • PPN: BAL-BMF005H

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$112.07/ EA

Specifications

Specifications

Country of Origin
Hungary
Principle of operation
Magnetic field sensor
Cable
PUR, 0.2 m
Fastening detail
Mounting bracket BMF 305-HW*
Switching output
PNP Normally open (NO)
Operating voltage Ub
10...30 VDC
IP rating per IEC 60529
IP67
Dimension33.5 x 5 x 10.5 mm
ConnectionM8x1-Male, 3-pin
Applicationlarger actuators
Housing materialLCP
Switching frequency10000 Hz
Ambient temperature-25...85 °C
Approval/ConformityCE; UKCA; cULus; WEEE
