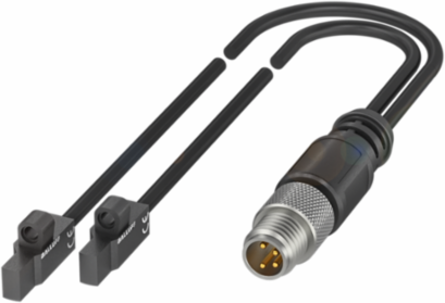

Balluff BMF 103K-PS-C-2A-SA95-S75-00,3 Magnetic Field Sensor, PNP NO, 10-30 VDC, IP67, 9 x 4.8 x 16 mm
Balluff BMF 103K-PS-C-2A-SA95-S75-00,3 Magnetic Field Sensor, PNP NO, 10-30 VDC, IP67, 9 x 4.8 x 16 mm
- MPN: BMF 103K-PS-C-2A-SA95-S75-00,3
- PPN: BAL-BMF001R
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$198.46/ EA
Description
The Balluff magnetic field sensor is a compact and highly efficient solution designed for precise detection in various applications, particularly optimized for short-stroke cylinders. With a PNP normally open output and a robust operating voltage range of 10-30 VDC, this sensor ensures reliable performance even in challenging environments, boasting an impressive IP67 rating for dust and water resistance. Its small dimensions of 9 x 4.8 x 16 mm make it easy to integrate into tight spaces, while the durable PBT housing and a temperature tolerance of -25 to 85 °C enhance its longevity and versatility. This sensor is not only CE and UKCA approved but also conforms to cULus standards, making it a dependable choice for industrial automation needs.
Specifications
Specifications
- Country of Origin
- Hungary
- Principle of operation
- Magnetic field sensor
- Cable
- PUR, 0.3 m
- Fastening detail
- Mounting bracket BMF 103-HW*
- Switching output
- PNP Normally open (NO)
- Operating voltage Ub
- 10...30 VDC
- IP rating per IEC 60529
- IP67
Dimension9 x 4.8 x 16 mm
ConnectionM8x1-Male, 4-pin
ApplicationOptimized response path especially suited for short-stroke cylinders.
Housing materialPBT
Switching frequency30000 Hz
Ambient temperature-25...85 °C
Approval/ConformityCE; UKCA; cULus; WEEE
