Balluff

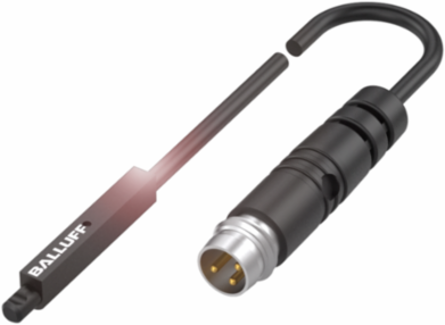

Balluff BMF 303K-PS-C-2A-S49-00,2 Magnetic Field Sensor - 25.5 x 3 x 4.5 mm, PNP, IP67

Magnetic Field Sensor - 25.5 x 3 x 4.5 mm, PNP, IP67
  • MPN: BMF 303K-PS-C-2A-S49-00,2
  • PPN: BAL-BMF0041

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$157.08/ EA

Description

Magnetic Field Sensor - 25.5 x 3 x 4.5 mm, PNP, IP67

Specifications

Specifications

Country of Origin
Hungary
Principle of operation
Magnetic field sensor
Cable
PUR, 0.2 m
Fastening detail
Mounting bracket BMF 303-HW*
Switching output
PNP Normally open (NO)
Operating voltage Ub
10...30 VDC
IP rating per IEC 60529
IP67
Dimension25.5 x 3 x 4.5 mm
ConnectionM8x1-Male, 3-pin
Applicationminiaturized actuators
Housing materialLCP
Switching frequency30000 Hz
Ambient temperature-25...85 °C
Approval/ConformitycULus; CE; UKCA; WEEE

Downloads
