Leviton 18D24-UH Male Plug 2/0-4/0 AWG Double Set Screw 400 Amp NEMA 3R

MPN: 18D24-UH
UPC: 078477719404
PPN: LEV-18D24-UH

$77.66

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

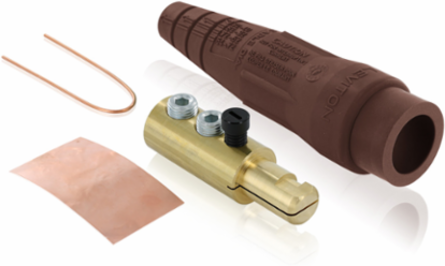

18 Series Ball Nose Cam-Type Male Plug, Contact & Insulator, Detachable, 2/0 - 4/0 AWG, Double Set Screw Termination, 400 Amp Max, 600VAC/DC, Type 3R When Mated, Brown

Features

Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
Single or double set screw termination
NEMA 3R rated for outdoor use when mated
UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

RoHS Compliant	True

Standards and Certifications

NEMA Rating	Type 3R

UL Listed	File E-13399; 1691, 508 – 35k A / 600V Short Circuit Current Rating

Material Specifications

Contacts	Brass

Strain Relief	Copper Wire

Mechanical Specifications

Cable Range	2/0 – 4/0 AWG
Gender	Male

Connection Type	Double Set Screw

Product Features

Contact Cat. No.	18D24-C

Insulator Cat. No.	18SDM-14H

Electrical Specifications

Max. Amperage	400 Amp

Max. Voltage	600 Volt

Male Plug 2/0-4/0 AWG Double Set Screw 400 Amp NEMA 3R
