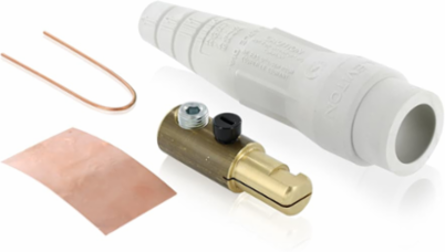

Leviton 18D21-UW Cam-Type Male Plug, 300 Amp, 2-2/0 AWG, Single Set Screw Termination, White
Leviton 18D21-UW Cam-Type Male Plug, 300 Amp, 2-2/0 AWG, Single Set Screw Termination, White
- MPN: 18D21-UW
- UPC: 078477746738
- PPN: LEV-18D21-UW
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$62.66/ EA
Description
18 Series Ball Nose Cam-Type Male Plug, Contact & Insulator, Detachable, #2 - 2/0 AWG, Single Set Screw Termination, 300 Amp Max, 600VAC/DC, Type 3R When Mated, White
Features
- Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
- Single or double set screw termination
- NEMA 3R rated for outdoor use when mated
- UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
- Color-coding provides fast and easy phase identification
- Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Specifications
Product Features
- Cable Range
- 2-2/0 AWG
- Component
- Complete
- Contact Cat. No.
- 18D21-C
- Insulator Cat. No.
- 18SDM-22E
- Max. Voltage
- 600 Volt
- Standards and Certifications
- UL/CSA
- Warranty
- NA
ColorWhite
Connection TypeSingle Set Screw
GenderMale
Max. Amperage300 Amp
Series18
Style NameDetachable
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
