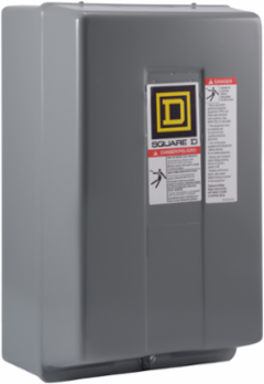

Square D 8903LXG20V02 Mechanically Held Lighting Contactor 30A 2 Pole 600V NEMA 1
Square D 8903LXG20V02 Mechanically Held Lighting Contactor 30A 2 Pole 600V NEMA 1
- MPN: 8903LXG20V02
- UPC: 785901057260
- PPN: SCH-8903LXG20V02
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1250.03/ EA
Description
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 2 pole device has 2 NO contacts. Supplied with two operating coils. One is for latching the contactor and the other is to unlatch the contactor. Both coils are 110/120 VAC 50/60 Hz rated. Other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coils and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
Specifications
Environment
- Product Certifications
- UL listed || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407018EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
Circularity ProfileN/A
Halogen Content PerformanceHalogen free plastic parts product
Complementary
- Height
- 322 mm
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Additional Included Device
- none
- Electrical Connection
- screw-clamp terminals
- Depth
- 153 mm
- Poles Description
- 2P 2 NO
Control Typeno control units
Inrush Power In Va150-150 VA 60 Hz || 140-140 VA 50 Hz || 25-25 VA 50/60 Hz
Local Signallingno indicator
Width198 mm
[In] Rated Current20-20 A tungsten || 30-30 A fluorescent
Specifications
- Range Of Product
- 8903LX
- Control Circuit
- separate control circuit
Product Or Component TypeMechanically Held Lighting Contactor
