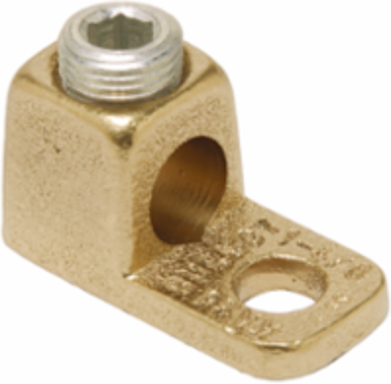

Burndy KA29HEX Copper Terminal Connector - 5/8 Inch Hex Bolt, #2 Stranded to 250 kcmil
- MPN: KA29HEX
- UPC: 781810043998
- PPN: BUR-390068
CAD
$332.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Terminal, #2 Stranded - 250 kcmil; hex head bolt 5/8"
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 64/79 in |
|---|---|
| Dimension - Height fraction | 1-22/25 in |
| Dimension - Hole Size inch | 0.42 in |
| Dimension - L Length Overall mm | 49 mm |
| Dimension - N inch | 0.44 in |
| Dimension - B Length inch | 0.81 in |
|---|---|
| Dimension - Height inch | 1.88 in |
| Dimension - Hole Size mm | 11 mm |
| Dimension - Length Overall inch | 1.94 in |
| Dimension - Pad Width inch | 0.94 in |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|
| Standards - RoHS Compliance Status | EX |
|---|
Conductor Related
| Conductor - Copper Str Size | 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
|---|---|
| Conductor Type | CU C Str-Size |
| Conductor - Copper Str Size Range | 2 AWG-250 kcmil |
|---|
General
| Connector Type | Terminal |
|---|---|
| Material | Copper Alloy |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plating Type | Unplated |
| Type | Bolted Lugs & Terminals |
| Hardware Type | 5/8 UNF Hex SetScrew |
|---|---|
| Material - Hardware | Stainless Steel |
| Physical Attribute - Number of Screws | 1 |
| Plated | N |
| Temperature Rating | 194 |
| UPC | 781810043998 |
Electrical Ratings
| Rating - Minimum Voltage | 600 |
|---|
