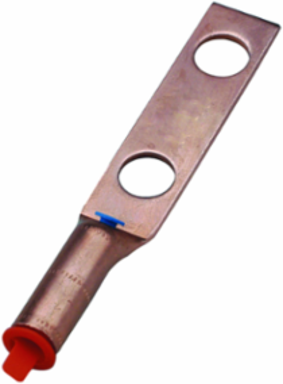

Burndy YGA292N HYLUGTM Compression Terminal, 250 kcmil, 5.21 Inch L, Direct Burial, Yellow

MPN: YGA292N
UPC: 781810220337
PPN: BUR-279067

$59.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Hylug Copper ground, 250 kcmil, 5.16 in L, Grounding Irreversible Compression Terminals.

Documentation & Downloads

Specifications

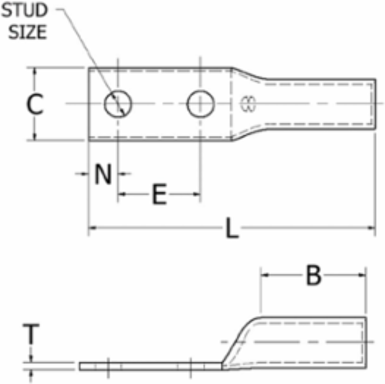

Dimensions

Dimension - B Length fraction	1-4/7 in
Dimension - Bolt Hole Size inch	0.52 in
Dimension - Hole Size inch	0.56 in
Dimension - L Length Overall mm	132 mm
Dimension - N inch	0.62 in
Dimension - Pad Width inch	1.09 in
Dimension - Stud Size fraction	1/2
Dimension - Width fraction	1/2 in

Dimension - B Length inch	1.57 in
Dimension - Bolt Size inch	0.50 in
Dimension - Hole Size mm	14 mm
Dimension - Length Overall inch	5.21 in
Dimension - Outside Diameter inch	0.75 in
Dimension - Strip Length inch	1-11/16
Dimension - Stud Size inch	1/2
Dimension - Width inch	0.53 in

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Listed Direct Burial	Yes
Certification - cULus	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - UL Recognized	No
Standards - Industry Standards Met	UL467
UL Listed	Yes

Conductor Related

Conductor - Copper Str Size	250 kcmil

Conductor - Copper Str Size Range	250 kcmil

General

Application	For Grounding Applications And Direct Burial In Earth Or Concrete
Connector Type	Terminal
Material	Copper
Plated	N
Sub Brand	HYLUG
Type	Terminals
UPC 12 Digit	7818102203377
