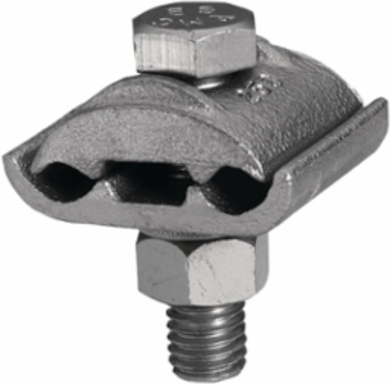

Burndy GCL30W Mechanical Grounding Connector, 2 Copper Cables to 1/4" Thick Bar, #4 AWG - 300 kcmil, 1/2" Stud
- MPN: GCL30W
- UPC: 781810042755
- PPN: BUR-26424J
- UNSPSC: 39121408
CAD
$209.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mechanical Grounding Connector, 2 Copper Cables to 1/4" Thick Bar, #4 AWG - 300 kcmil, 1/2" Stud.
Features
- Mechanical Grounding Connector
- 2 Copper Cables to 1/4" Thick Bar
- #4 AWG-300 kcmil
- 1/2" Stud
- Hot Tin Dipped
Specifications
Key Specifications
- Country of Origin
- Mexico
- Conductor - Copper Solid Size Range
- 4 AWG - 300 KCMIL
- Conductor - Copper Str Size Range
- 5 AWG - 300 kcmil
- Dimension - Height inch
- 2.00 in
- Dimension - Length Overall inch
- 2.21 in
- Dimension - Width inch
- 1.50 in
- Installation Torque Recommended in-lb
- 480 lb-in
- Plated
- Y
- Standards - RoHS Compliance Status
- EX
- Class Code
- B41
- Harmonization Code
- 8535908060
- Lead Time
- 12 wk
- UL Listed
- No
- Material - Hardware
- DURIUM™ Silicon Bronze
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810042755
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810042756
- Package - Total Units
- 12 EA
- Package Weight
- 0.000 lb.
- Pallet Weight
- 0.000 lb.
- NAICS Code
- 3359319102
Conductor - Copper Solid Size4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Str Size5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil
Dimension - Bus Thickness inch0.25 in
Dimension - L Length Overall mm56 mm
Dimension - Stud Size inch33/64
Dimension - Width mm38 mm
Physical Attribute - Screw TypeHexagonal Bolt
Product TypeMechanical
Certification AgencyProposition 65
Freight Class Code16027000
Image Actual Or RepresentativeA
Sub Class CodeB41BD7F
MaterialCopper Alloy
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Package - GTIN - Package30781810042756
Package Quantity12 EA
Pallet - GTIN - Package70781810042754
Standard Package Quantity12
Certifications
- CSA Approved
- No
- ETL
- No
- UL Recognized
- No
cULusNo
UL Listed Direct BurialYes
