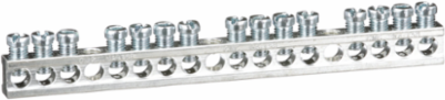

Square D PK15GTA QO Loadcentre Equipment Ground Bar Assembly, 15 Connectors, 0.312 Inch Depth
- MPN: PK15GTA
- UPC: 785901026419
- PPN: SCH-PK15GTA
CAD
$36.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO® Circuit Breaker Loadcentres, PK15GTA, from Square D® are Underwriters Laboratories (UL) Listed and CSA certified panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.
Features
- Outfitted with 15 individual terminal screw points, this equipment grounding kit provides ample termination capacity for consolidating ground wires. It allows commercial electricians to land multiple clean ground paths within a single enclosure, keeping the panelboard highly organized, uncluttered, and compliant with NEC® wire-fill regulations.
- Extruded from heavy-duty, high-strength aluminum alloy, this ground bar delivers exceptional electrical conductivity and thermal performance. It ensures a reliable, low-impedance path to earth ground, which is vital for rapidly clearing electrical faults and preventing hazardous voltage spikes on your equipment chassis.
- Engineered with flexible terminal sizing, the bar securely clamps a wide range of solid or stranded copper and aluminum conductors (typically accommodating #14 to #4 AWG wires). This broad compatibility eliminates the need for specialized adapters, allowing technicians to terminate main system grounds and small control circuits on the exact same busbar.
- Designed with pre-spaced mounting holes that line up perfectly with the factory bosses in Square D™ QO™ and Homeline™ load centers, this ground bar offers true bolt-on installation. It includes all necessary self-tapping mounting screws, ensuring a tight, metal-to-metal mechanical bond with the backpan without requiring custom drilling or tapping.
Documentation & Downloads
Specifications
Additional
- Number of Connectors
- 15

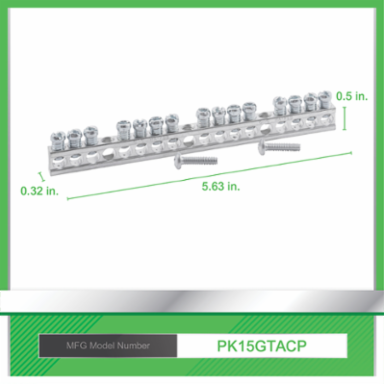

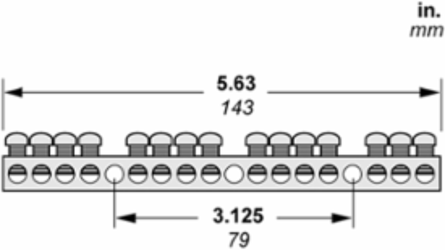

- Bar Length
- 5.63 in (143 mm)
- Device Mounting
- Direct mounting back of enclosure
- Wire Size
- AWG 14 to AWG 4 copper, AWG 12 to AWG 4 aluminum
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Warranty
- 18 months
- Reach Regulation
- Free of Substances of Very High Concern above threshold
- EU RoHS Directive
- Pro-active compliance, product out of EU RoHS legal scope
- Provided Equipment
- 2 screws
- Range of Product
- QO
Depth0.312 in
Maximum Length of Segment3.15 in (80 mm)
Height0.437 in
Tightening Torque30 lb.in, mounting screw torque varies by wire gauge from 20 to 35 lb.in
Mercury FreeYes
RoHS ExemptionYes
Environmental DisclosureENVPEP2212001
China RoHS RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Circularity ProfileN/A
Product or Component Typebar
Country of OriginUS
