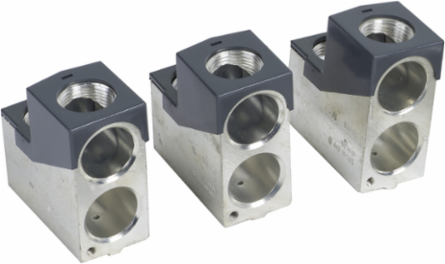

Schneider Electric AL600LS52K3 PowerPacT Mechanical Lug Kit, 400-600A, Set of 3

MPN: AL600LS52K3
UPC: 785901163428
PPN: SCH-AL600LS52K3

$525.37

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT L-Frame Molded-Case Circuit Breakers (600A) is a flexible, high performance offer certified to global standards. They are available with optional features such as Micrologic trip protection from 250–600A up to 600Vac. They also come with a high performance UL listed interrupting ratings from 18 to 200kA at 480Vac. PowerPacT L-Frame come in (2) types, Standard (80%) or 100% rating. This PowerPacT mechanical lug is a connection accessory. This PowerPacT L-Frame accessory has a rated current of 400-600A and is made of aluminium and comes in set of 3. These accessories are UL, CSA, NOM, IEC, CCC certified and CE marked for global acceptance. This product comes with an 18 month warranty.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Physical Attributes

Kcmil Size	500 kcmil

Complementary Attributes

Line Rated Current	400-600 A

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Cable Material	aluminium, copper
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2543
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Mounting Mode	by screws
Number Of Poles	3P
Product Or Component Type	mechanical lug
Range Of Product	PowerPact L
Sustainable Packaging	Yes
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market Segmentation	Commercial, Industrial
Location Of Connection	downstream, upstream
Local Publishable Date	2026-03-25
Stocking Flag	N
Serviceability	No
Field Service Division	PPIBS
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Awg Gauge	2/0 AWG
Material	aluminium
Number Of Cables	2
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 3
Returnability	Yes
Accessory / Separate Part Category	connection accessory
Package Weight(Lbs)	935.000 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes

Take Back	No
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
