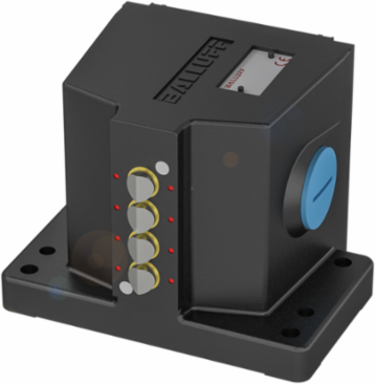

Balluff BNS 813-D02-D16-100-22-02 Mechanical multiple position limit switches with safety switch positions - BNS00R7
- MPN: BNS 813-D02-D16-100-22-02
- PPN: BAL-BNS00R7
CAD
$700.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mechanical multiple position limit switches with safety switch positions - BNS00R7
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Housing material | Aluminum, Anodized |
| Version | Safety EN 60204-1 |
| Continuous current | 1-2. Switch position: 6 A |
| Installation | Vertical |
| Approach speed | 1-2. Switch position: 40 m/min |
| Connection type | 1-2. Switch position: Screw terminal |
| IP rating per IEC 60529 | IP67 |
| Dimension | 120 x 70 x 83 mm |
|---|---|
| Number of switching positions | 2x Chisel |
| Operating principle | 1-2. Switch position: Mechanical |
| Rated operating voltage Ue | 1-2. Switch position: 250 VAC |
| Approach direction | longitudinal, parallel to attachment surface |
| Switch position spacing | 16 mm |
| Ambient temperature | -5...85 °C |
| Approval/Conformity | CE; UKCA; CCC; WEEE |
