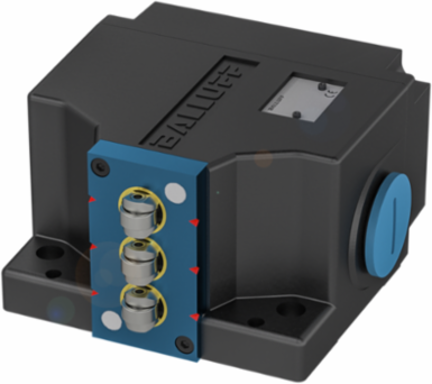

Balluff BNS 823-B03-L12-61-A-22-03 Mechanical multiple position limit switches with safety switch positions - BNS04M2
- MPN: BNS 823-B03-L12-61-A-22-03
- PPN: BAL-BNS04M2
CAD
$1375.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mechanical multiple position limit switches with safety switch positions - BNS04M2
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Hungary
- Number of switching positions
- 3x Roller bearing
- Operating principle
- 1-3. Switch position: Mechanical
- Rated operating voltage Ue
- 1-3. Switch position: 250 VAC
- Approach direction
- longitudinal, parallel to attachment surface
- Connection type
- 1-3. Switch position: Screw terminal
- IP rating per IEC 60529
- IP67
Housing materialAluminum, Anodized
VersionSafety EN 60204-1
Continuous current1-3. Switch position: 6 A
InstallationVertical
Approach speed1-3. Switch position: 80 m/min
Ambient temperature-5...85 °C
Approval/ConformityCE; UKCA; CCC; WEEE
