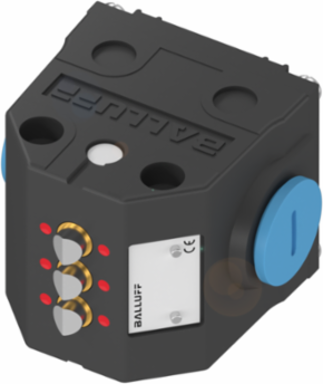

Balluff BNS 813-B03-K08-40-69-03 Mechanical multiple position limit switches with safety switch positions - BNS055R


Balluff BNS 813-B03-K08-40-69-03 Mechanical multiple position limit switches with safety switch positions - BNS055R
- MPN: BNS 813-B03-K08-40-69-03
- PPN: BAL-BNS055R
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$798.44/ EA
Specifications
Specifications
- Country of Origin
- Hungary
- Number of switching positions
- 3x Ball
- Operating principle
- 1-3. Switch position: Mechanical
- Rated operating voltage Ue
- 1-3. Switch position: 250 VAC
- Approach direction
- longitudinal, parallel to attachment surface
- Connection type
- 1-3. Switch position: Solder connection
- IP rating per IEC 60529
- IP67
Housing materialAluminum, Anodized
Versionwith forced opening
Continuous current1-3. Switch position: 5 A
InstallationVertical
Approach speed1-3. Switch position: 9 m/min
Ambient temperature-5...85 °C
Approval/ConformityCE; UKCA; CCC; WEEE
