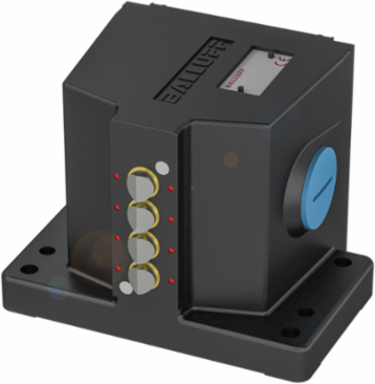

Balluff BNS 813-D03-L12-100-22-03 Mechanical multiple position limit switches with safety switch positions - BNS00UN
- MPN: BNS 813-D03-L12-100-22-03
- PPN: BAL-BNS00UN
CAD
$1116.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mechanical multiple position limit switches with safety switch positions - BNS00UN
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Housing material
- Aluminum, Anodized
- Version
- Safety EN 60204-1
- Continuous current
- 1-3. Switch position: 6 A
- Installation
- Vertical
- Approach speed
- 1-3. Switch position: 80 m/min
- Connection type
- 1-3. Switch position: Screw terminal
- IP rating per IEC 60529
- IP67
Dimension120 x 80 x 83 mm
Number of switching positions3x Roller bearing
Operating principle1-3. Switch position: Mechanical
Rated operating voltage Ue1-3. Switch position: 250 VAC
Approach directionlongitudinal, parallel to attachment surface
Switch position spacing12 mm
Ambient temperature-5...85 °C
Approval/ConformityCE; UKCA; CCC; WEEE
