Balluff

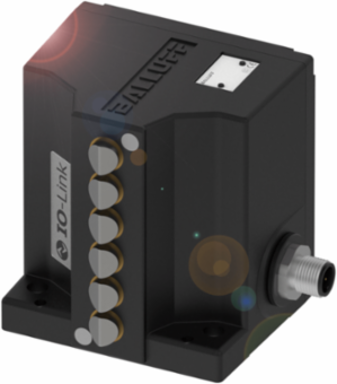

Balluff BNS 819-B06-D12-61-12-10-S4R-I Mechanical multiple position switches BNS 819-B06-D12-61-12-10-S4R-I

Mechanical multiple position switches BNS 819-B06-D12-61-12-10-S4R-I
  • MPN: BNS 819-B06-D12-61-12-10-S4R-I
  • PPN: BAL-BNS0523

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1935.16/ EA

Description

Mechanical row-position counters with up to 16 switching points are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.

Specifications

Specifications

Housing material
Aluminum
Version
Snap contact
Installation
Vertical
Approach speed
1-6. Switch position: 40 m/min
Ambient temperature
-5-85 °C
Approval/Conformity
CE, IO-Link, WEEE
Number of switching positions6x Chisel
Operating principle1-6. Switch position: Mechanical
Approach directionlongitudinal, parallel to attachment surface
Connection type1. Switch position: Connector
IP ratingIP67
