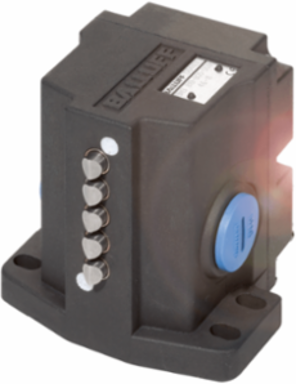

Balluff BNS 819-B12-D08-46-13 Mechanical multiple position switches BNS 819-B12-D08-46-13
- MPN: BNS 819-B12-D08-46-13
- PPN: BAL-BNS03UZ
CAD
$2485.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mechanical row-position counters with up to 16 switching points are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.
Documentation & Downloads
Specifications
Key Specifications
- Housing material
- Aluminum
- Version
- Snap contact
- Continuous current
- 1-12. Switch position: 0.1 A
- Installation
- Vertical
- Approach speed
- 1-12. Switch position: 20 m/min
- Ambient temperature
- -5-85 °C
- Approval/Conformity
- CE, CSA, WEEE
Number of switching positions12x Chisel
Operating principle1-12. Switch position: Mechanical
Rated operating voltage Ue1-12. Switch position: 250 VAC
Approach directionlongitudinal, parallel to attachment surface
Connection type1-12. Switch position: Screw terminal
IP ratingIP67
