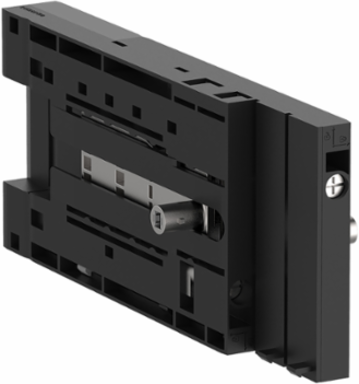

Schneider Electric LA9G972 Contactor accessory, mechanical interlock, TeSys Giga, LC1G630-800 with LC1G265-500
Schneider Electric LA9G972 Contactor accessory, mechanical interlock, TeSys Giga, LC1G630-800 with LC1G265-500
- MPN: LA9G972
- PPN: SCH-LA9G972
- UNSPSC: 39121410
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$214.32/ EA
Description
These accessories are mechanical interlock for TeSys Giga 630-800 and TeSys Giga 265-500 contactors. To be used for reversing and changeover assemblings. Without electrical interlocking. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.
Features
- Ergonomic design helps for easy and quickly assembly of contactors of same size or different sizes
- Designed to meet needs of demanding applications built-in with advanced features and functionalities
- Fewer references covering wider applications means simpler to select and less inventory to carry
- Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
- Modular design and compact size for easy maintenance, short down times and less installation space consumption
- Unique QR code, quick access to complete product data, technical video, anti-counterfeit checking and instruction sheet
Specifications
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Product Compatibility
- LC1G265...500, LC1G630...800, LC1G300...475, LC1G620
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2105013EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Operating Altitude9842.52 ft (3000 m) without derating, 5000 m with derating factor
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Circularity ProfileENVEOLI2105013
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2105013EN
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Electrical Circuit Type
- star-delta
- Interlocking Type
- mechanical
- Poles Description
- 3P
- Product Or Component Type
- mechanical interlock
- Range Of Product
- TeSys Giga
- Sustainable Packaging
- Yes
- Accessory Separate Part Category2
- interlocking accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP2105013EN
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2025-07-09
TraceabilityNo
WEEE ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Short NameLA9G
Halogen Free StatusHalogen free plastic parts product
Package Weight Lbs205.000 g
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Medium DescContactor accessory, mechanical interlock, TeSys Giga, LC1G630-800 with LC1G265-500
Product Kit IdentifierN
Global Commercial StatusCommercialised
General Attributes
- Product Or Component Type
- mechanical interlock
Range Of ProductTeSys Giga
Conformance Attributes
- Standards
- EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, GB/T 14048.4
