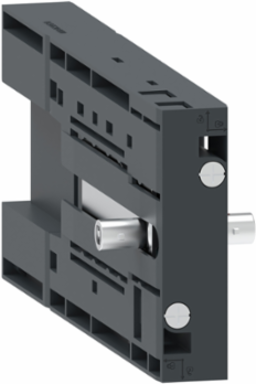

Schneider Electric LA9G973 Mechanical Interlock for TeSys Giga Contactor LC1G630-800, IP20, 3P

MPN: LA9G973
PPN: SCH-LA9G973

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$282.00/ EA

Qty:

Loading add to cart quantity...

Description

These accessories are mechanical interlock for TeSys Giga 630-800 and TeSys Giga 630-800 contactors. To be used for reversing and changeover assemblings. Without electrical interlocking. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Specifications

Environment

Product Certifications: CB Scheme || CCC || cULus || EAC || CE || UKCA || EU-RO-MR by DNV-GL

Pollution Degree: 3 IEC 60947-1

Standards: EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || GB/T 14048.4

Ip Degree Of Protection: IP20 IEC 60529

Ambient Air Temperature For Operation-25-60 °C

Ambient Air Temperature For Storage-60-80 °C

Operating Altitude3000 m without derating || 5000 m with derating factor

Specifications

Interlocking Type: mechanical

Accessory / Separate Part Category: interlocking accessory

Range Compatibility: TeSys Giga

Product Compatibility: LC1G630...800 || LC1G620

Range: TeSys

Poles Description3P

Electrical Circuit Typereversing || star-delta || changeover

Product Or Component Typemechanical interlock

Device Short NameLA9G

Offer Sustainability

China Rohs Regulation: X

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2105013

Eu Rohs Directive: Compliant with Exemptions

Circularity ProfileENVEOLI2105013

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Height: 50 mm

Depth: 120 mm

Width80 mm

Net Weight0.25 kg
