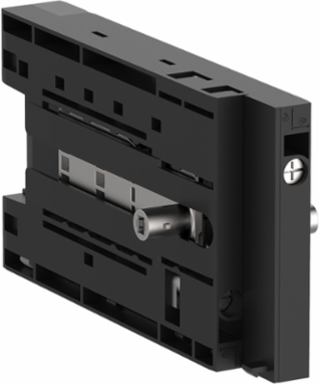

Schneider Electric LA9G971 Mechanical interlock, for TeSys Giga contactor LC1G265-500 and LC1G115-225, IP20

Mechanical interlock, for TeSys Giga contactor LC1G265-500 and LC1G115-225, IP20
  • MPN: LA9G971
  • PPN: SCH-LA9G971

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$110.00/ EA

Description

These accessories are mechanical interlock for TeSys Giga 265-500 and TeSys Giga 115-225 contactors. To be used for reversing and changeover assemblings. Without electrical interlocking. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Specifications

Complementary

Height
50 mm
Width
80 mm
Net Weight0.15 kg
Depth140 mm

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2105013
Pvc Free
Yes
China Rohs Regulation
X
Eu Rohs Directive
Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2105013
Halogen Content PerformanceHalogen free plastic parts product

Specifications

Interlocking Type
mechanical
Product Or Component Type
mechanical interlock
Poles Description
3P
Range Compatibility
TeSys Giga
Device Short Name
LA9G
Accessory / Separate Part Categoryinterlocking accessory
RangeTeSys
Electrical Circuit Typestar-delta
Product CompatibilityLC1G115...225 || LC1G265...500 || LC1G205...245 || LC1G300...475

Environment

Ambient Air Temperature For Operation
-25-60 °C
Ip Degree Of Protection
IP20 IEC 60529
Ambient Air Temperature For Storage
-60-80 °C
StandardsEN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || GB/T 14048.4
Pollution Degree3 IEC 60947-1
Operating Altitude3000 m without derating || 5000 m with derating factor
