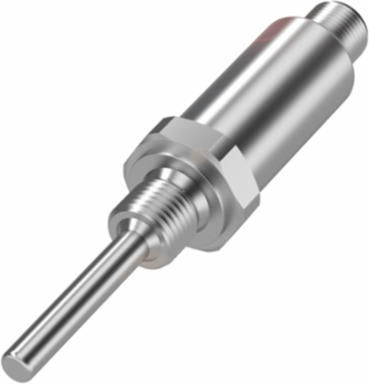

Balluff BFT 6050-DX002-A06A1A-S4 Media-contacting temperature sensors BFT 6050-DX002-A06A1A-S4
- MPN: BFT 6050-DX002-A06A1A-S4
- PPN: BAL-BFT0006
CAD
$402.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Media-contacting temperature sensors BFT 6050-DX002-A06A1A-S4
Documentation & Downloads
Specifications
Key Specifications
| Measuring range | -30-150 °C |
|---|---|
| Operating voltage Ub | 10-30 VDC |
| Connection | Connector, M12x1-Male, 4-pin |
| Process connection | G 1/4" outer |
| Housing material | Stainless steel (1.4571) |
| Ambient temperature | -40-85 °C |
| Approval/Conformity | CE, cULus, WEEE |
| Measuring element | Pt1000 |
|---|---|
| Analog output | Analog, current 4…20 mA |
| Installation length from contact surface | 50 mm |
| Process connection material | Stainless steel (1.4571) |
| Pressure rating max. | 270 bar |
| IP rating | IP67, IP69, IP69K |
