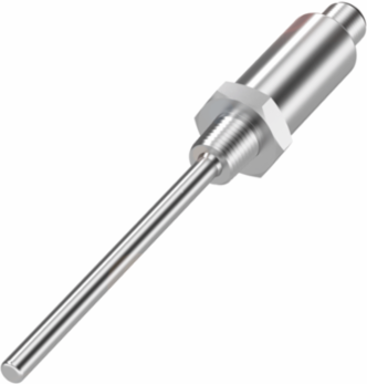

Balluff BFT 6100-FC002-A06A1A-S4 Media-contacting temperature sensors BFT 6100-FC002-A06A1A-S4
Balluff BFT 6100-FC002-A06A1A-S4 Media-contacting temperature sensors BFT 6100-FC002-A06A1A-S4
- MPN: BFT 6100-FC002-A06A1A-S4
- PPN: BAL-BFT000A
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$390.93/ EA
Specifications
Specifications
- Measuring range
- -30-150 °C
- Operating voltage Ub
- 10-30 VDC
- Connection
- Connector, M12x1-Male, 4-pin
- Process connection
- NPT 1/4" outer
- Housing material
- Stainless steel (1.4571)
- Ambient temperature
- -40-85 °C
- Approval/Conformity
- CE, cULus, WEEE
Measuring elementPt1000
Analog outputAnalog, current 4…20 mA
Installation length from contact surface100 mm
Process connection materialStainless steel (1.4571)
Pressure rating max.270 bar
IP ratingIP67, IP69, IP69K
