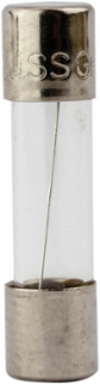

Bussmann GMC-4-R Medium Time-Delay Fuse 4A, 0.75 Inch x 0.25 Inch, Glass Material
- MPN: GMC-4-R
- UPC: 051712642958
- PPN: BUS-GMC-4-R
CAD
$1.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This medium time-delay fuse by Bussmann is engineered for reliability in electronic circuit applications, featuring a 4A amperage rating that ensures optimal protection against overloads. Constructed from a durable glass tube with nickel-plated brass endcaps, it offers a maximum response time of 60 minutes at 135% of its rating and just 2 minutes at 200%, making it suitable for sensitive electronic devices that can tolerate brief overloads. CE marked and RoHS compliant, it adheres to stringent standards, providing peace of mind when incorporating it into various electronic circuits.
Features
- Engineered to the exact industry-standard metric dimensions of 5 mm x 20 mm, this ultra-compact cartridge fuse slots perfectly into conventional panel-mount holders, PCB clips, or inline blocks. It ensures immediate, drop-in compatibility for electrical maintenance and system assemblies without necessitating costly hardware reconfigurations.
- Featuring a precision-designed medium time-lag (slow-blow) characteristic, this fuse safely tolerates temporary current spikes holding steady for up to 60 minutes at 135% or 2 minutes at 200% load. This intentional lag prevents nuisance blowing caused by initial inductive motor surges or capacitor charging while providing rapid isolation during true short-circuits.
- Rated for a maximum continuous current of 4 Amps at 125 Vac, this electronic fuse is optimized for primary or supplemental board-level safety. Its internal 0.019-Ohm DC cold resistance minimizes power dissipation and voltage drop, ensuring your downstream microelectronics receive highly stable operational voltage.
- Boasting an impressive short-circuit interrupting rating (AIC) of 10 kA at 125 Vac, the heavy-duty glass housing handles high-fault currents safely. The structural design isolates violent electrical overloads instantly, preventing thermal damage or arc-flashes from spreading to surrounding circuit components.
- Constructed with a clear, high-grade cylindrical glass tube and robust nickel-plated brass endcaps, this ferrule-style fuse guarantees superior corrosion resistance and consistent conductivity. The transparent casing enables rapid visual inspection, eliminating the downtime associated with using a multimeter to diagnose a blown link.
Documentation & Downloads
Specifications
Additional
- Amperage
- 4A
- Interrupt Rating
- 10 kAIC at 125 Vac
- Material
- Glass tube, nickel-plated brass endcaps
- Fuse Indicator
- Non Indicating
- Application
- Electronic circuits
- Compliance
- RoHS, CE
Voltage125 Vac
Response Time60 min maximum at 135%, 2 min maximum at 200%
ConnectionFerrule end X ferrule end
TypeElectronic - small dimension
Used Without axial leads
Dimensions5 x 20 mm
