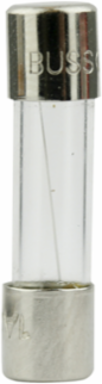

Bussmann GMC-5-R Medium Time-Delay Fuse 5A 125 Vac 60 min Response, .197 Inch Width, Glass Tube
- MPN: GMC-5-R
- UPC: 051712642972
- PPN: BUS-GMC-5-R
CAD
$1.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Medium Time-Delay Fuse 5A 125 Vac 60 min Response, .197 Inch Width, Glass Tube
Features
- Engineered with a sophisticated medium time-delay characteristic, the GMC-5-R is specifically designed to tolerate temporary inrush currents without "nuisance tripping." This makes it the ideal choice for protecting sensitive electronic circuits and small motor loads where a standard fast-acting fuse would fail prematurely during initial power-up.
- This fuse follows the universal small-dimension metric format 5mm times 20mm, ensuring a perfect drop-in fit for a vast range of international consumer electronics, power supplies, and industrial control panels. It eliminates the guesswork for technicians looking to replace standard glass cartridge fuses in both domestic and imported hardware.
- Despite its compact glass body, this fuse boasts a high 10,000A interrupting rating at 125VAC. This high "breaking capacity" ensures that in the event of a major short circuit, the fuse will clear the fault safely and cleanly, preventing catastrophic damage to your downstream components and reducing the risk of fire.
- Constructed with premium nickel-plated brass endcaps, the GMC-5-R offers superior oxidation resistance and high conductivity compared to cheaper alternatives. This ensures a low-resistance connection within your fuse holder or clip, preventing heat buildup and maintaining the precise 5-Amp trip threshold throughout the life of the device.
Documentation & Downloads
Specifications
Additional
- Amperage
- 5A
- Interrupt Rating
- 10 kAIC at 125 Vac (p.f.=.7-.8)
- Width
- 0.197 in
- Length
- .25 in
- Connection
- Ferrule end X ferrule end
- Fuse Indicator
- Non Indicating
- Application
- Electronic circuits
Voltage Rating125 Vac, 32 Vdc (self certified)
Response Time60 min maximum at 135%, 2 min maximum at 200%
Height.788 in
MaterialGlass tube, nickel-plated brass endcaps
TypeElectronic - small dimension
Used Without axial leads
