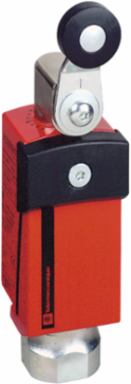

Telemecanique Sensors XCSD3918N12 Safety limit switch, Telemecanique Safety switches XCS, metal, rotary lever, 2NC + 1 NO, 1 entry tapped 1/2" NPT
- MPN: XCSD3918N12
- PPN: TES-XCSD3918N12
- UNSPSC: 39122213
CAD
$91.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XCSD Compact Safety Limit Switch has a thermoplastic roller lever, a Zamak body and head and a 1/2" NPT cable gland entry. It has 1 normally open and 2 normally closed snap action contacts. Its B10D reliability data is 50 000 000. It has IK06 impact resistance and IP66 / IP67 degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
- Contacts Type And Composition
- 1 NC + 1 NC + 1 NO
- Cable Entry
- 1 entry tapped 1/2" NPT
- Protection Technology
- plastic protective cover, secured by 5-lobe socket head safety screw
- Design
- compact
- Head Type
- rotary head
- Type Of Operator
- thermoplastic roller lever
Range Of ProductTelemecanique Safety switches XCS
Product Or Component Typesafety limit switch
Component NameXCSD
Materialmetal
Contact Operationsnap action
Complementary
- Height
- 122-122 mm
- Clamping Connection Capacity
- 1 x 0.34...2 x 0.75 mm²
- [Ithe] Conventional Enclosed Thermal Current
- 6 A
- Net Weight
- 0.255 kg
- Switch Actuation
- by 30° cam
- Positive Opening
- with NC contact
- Mechanical Durability
- 10000000 cycles
- Body Material
- zamak
- Enclosure Material
- plastic
- Width
- 34 mm
- Minimum Torque For Tripping
- 0.1 N.m
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
Short-Circuit Protection6 A cartridge fuse gG (gl)
Repeat Accuracy0.1 mm on tripping points, 1 million operating cycles for head with end plunger
Head Materialzamak
[Uimp] Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1 || 4 kV IEC 60664
[Ui] Rated Insulation Voltage300 VUL 508 || 400 V 3)EN/IEC 60947-1 || 300 VCSA C22.2 No 14
Positive Opening Minimum Torque0.25 N.m
Maximum Actuation Speed1.5 m/s
Electrical Connectionterminal
Contact Code DesignationB300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A
Depth35 mm
Number Of Poles3
Environment
- Product Certifications
- CSA || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529
- Electrical Shock Protection Class
- class I NF C 20-030 || class I EN/IEC 61140
- Protective Treatment
- TC
Ik Degree Of ProtectionIK06 EN 50102
StandardsEN/IEC 60204-1 || EN/IEC 60947-5-1 || UL 508 || EN 1088/ISO 14119 || CSA C22.2 No 14
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Safety Reliability DataB10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
Safety Levelcan reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired IEC 61508
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
