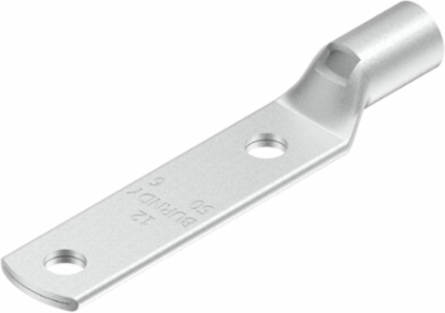

Burndy YAV1202M12 Metric Terminal, 4/0 Str Size, Copper, 113 mm Length, 35 kV Rating
- MPN: YAV1202M12
- UPC: 781810442708
- PPN: BUR-10068033
CAD
$92.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Non Insul Cu Comp Tubular Terminal, Metric, 2 Hole/W/InspWindow, 120 mm, M12 Stud, Tin - Electro Plated, 15 Index
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length inch | 26.2 in |
|---|---|
| Dimension - Length Overall inch | 4.43 in |
| Dimension - Strip Length inch | 1.06 in |
| Dimension - L Length Overall mm | 113 mm |
|---|---|
| Dimension - Pad Width inch | 29.0 in |
| Dimension - Z inch | 0.55 in |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | No |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
|---|---|
| Conductor - Copper Str Size Range | 4/0 |
| Conductor - Copper Str Size | 4/0 |
|---|---|
| Conductor Type | CU C Str-Size |
General
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYLUG™ |
| UPC | 781810442708 |
| Die Index | 15 |
|---|---|
| Plated | Y |
| Temperature Rating | 194 |
| Type | Metric Terminals |
| UPC 12 Digit | 7818104427088 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 10 |
|---|
