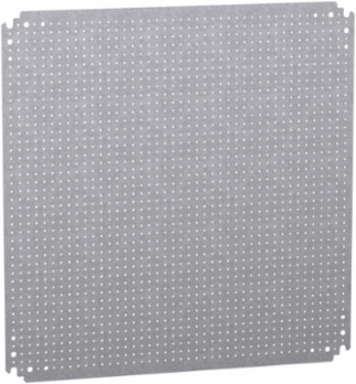

Microperforated Mounting Plate 600x600mm, Galvanised Steel, 135kg Load
Schneider Electric

Schneider Electric NSYMF66 Microperforated Mounting Plate 600x600mm, Galvanised Steel, 135kg Load

  • MPN: NSYMF66
  • PPN: SCH-NSYMF66
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $82.06

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is600 x W is600 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 135 Kg permissible load. Galvanised steel.

    Documentation & Downloads

    Specifications

    Key Specifications

    Enclosure Nominal Dimensions
    H: 600 mm W: 600 mm
    Material
    galvanised steel
    Quantity Per Set
    set of 1
    Device Application
    multi-purpose
    Range
    Spacial
    Range CompatibilitySpacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
    Accessory / Separate Part Categorymounting accessory
    Product Or Component Typemounting plate
    Mounting Plate Descriptionmicroperforated
    Mounting Locationstep slide || direct fixing on backstuds

    Complementary

    Width
    550 mm
    Thickness
    1.8 mm
    Depth
    125 mm
    Permanent Permissible Load
    135 kg
    Height565 mm
    Net Weight4.4 kg
    Fixing Modescrewed on backstuds M8 || by fixing element

    Offer Sustainability

    China Rohs Regulation
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP2202003EN
    Toxic Heavy Metal Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of SvhcYes

    Contractual warranty

    Warranty
    18 months
