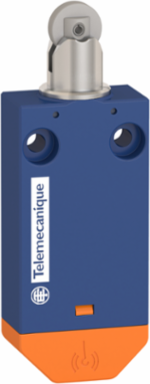

Telemecanique Sensors XCMW102 Wireless and batteryless limit switch XCMW, metal roller plunger, radio transmitter
- MPN: XCMW102
- PPN: TES-XCMW102
CAD
$385.43
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Wireless and batteryless limit switch XCMW, metal roller plunger, radio transmitter
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Body material | Plastic |
|---|---|
| Lever material | Metal |
| Type of operator | Spring return roller plunger metal |
| Communication network type | ZigBee green power - 2.4 GHz conforming to IEEE 802.15.4 |
| Electrical composition code | PW1 |
| Contact operation | Snap action |
| Switching operation per year | 3600 |
| Head material | Metal |
|---|---|
| Fixing mode | By 2 screws |
| Switch actuation | By 30° cam |
| Type of approach | Lateral approach, 2 directions |
| Response time | <= 2 ms |
| Operating rate | 60 cycles/min |
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Product or component type | Wireless limit switch |
| Sensor design | Miniature |
| Head type | Plunger head |
| Series name | Miniature format |
|---|---|
| Device short name | XCMW |
| Body type | Fixed |
Environment
| Electromagnetic compatibility | Radiated emission, immunity for industrial environments, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m), susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz), electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)), electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) |
|---|---|
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6 |
| IK degree of protection | IK04 conforming to IEC 62262 |
| Standards | IEC 60947-1 IEC 60947-5-1 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| IP degree of protection | IP65 conforming to IEC 60529 |
| Directives | 1999/5/EC - R&TTE directive 2004/108/EC - electromagnetic compatibility |
| Radio agreement | IC conforming to RSS, FCC conforming to RCM |
