Square D

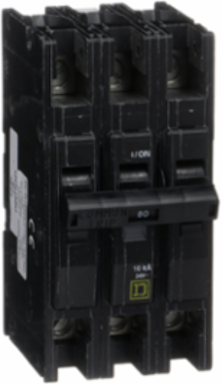

Square D QOU380 Mini Circuit Breaker 80A 3 Pole 240 VAC Mercury Free

Mini Circuit Breaker 80A 3 Pole 240 VAC Mercury Free
  • MPN: QOU380
  • UPC: 785901060314
  • PPN: SCH-QOU380

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1247.54/ EA

Description

QO™ and QOU Miniature Circuit Breakers, QOU380, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit.

Specifications

Amperage
80 A
Circuit Breaker Type
Standard
Electrical Connection
Slotted Box Lugs, Line and Load Side
AWG Gauge
AWG 12 to AWG 2/0 Aluminum/Copper

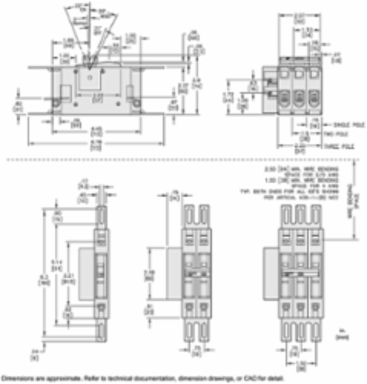

Width
2.25 in
Tightening Torque
45 lbf.in
Mercury Free
Yes
Compliance
RoHS Compliant with Exemptions
Voltage120/240 V AC, 60 V DC
Circuit Breaker ApplicationHACR rated
Mounting ModeUnit Mount
Height4.45 in
Depth2.95 in
Product CertificationsCSA, UL Listed, IEC
Halogen ContentHalogen Free
Country of OriginMexico

Downloads
