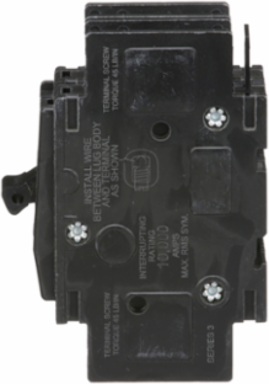

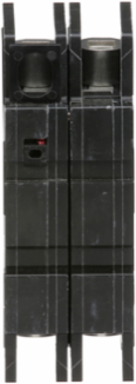

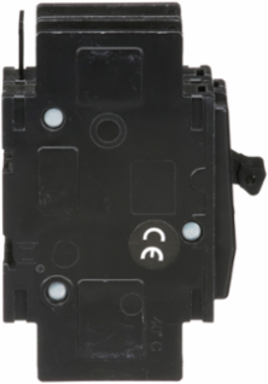

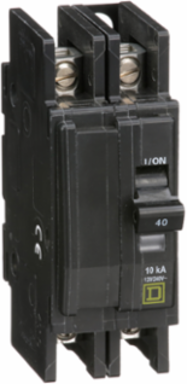

Square D QOU240 Mini Circuit Breaker 40A 2 Pole 120/240V AC 10kA
- MPN: QOU240
- UPC: 785901418740
- PPN: SCH-QOU240
CAD
$290.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO™ and QOU Miniature Circuit Breakers, QOU240, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
Documentation & Downloads
Specifications
Additional
- Amperage
- 40 A
- Breaking Capacity
- 10 kA
- Circuit Breaker Application
- HACR rated
- Mounting Mode
- Unit mount
- Height
- 4.05 in
- Depth
- 2.95 in
- Product Certifications
- CSA, UL Listed, IEC
- RoHS Compliance
- Compliant with Exemptions
- Mercury Free
- Yes
- Warranty
- 18 months
- Range Of Product
- QOU
Voltage120/240 V AC, 120 V AC, 48 V DC
Circuit Breaker TypeStandard
Electrical ConnectionSlotted box lugs, line and load side
AWG GaugeAWG 14 to AWG 2 aluminum/copper
Width1.5 in
Tightening Torque45 lbf.in (5.08 N.m)
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Halogen ContentHalogen free
Product Or Component TypeMiniature circuit-breaker
