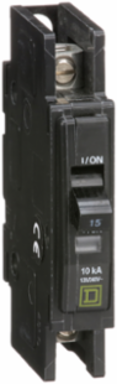

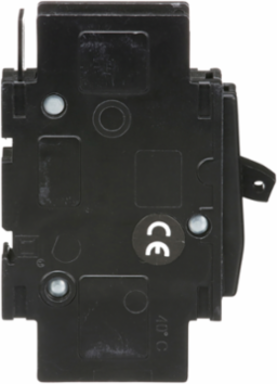

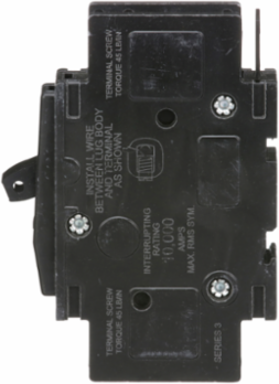

Square D QOU115 Mini Circuit Breaker, 15A, 1 Pole, 120/240V AC, HACR Rated, 10kA

MPN: QOU115
UPC: 785901418504
PPN: SCH-QOU115
UNSPSC: 39121603

$121.46

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 15A, 240VAC. This circuit breaker provides 10 kA breaking capacity. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA.

Features

QO MCBs are designed to sheild electronics from short-circuits and overcurrent
Provides instaneous and time-delayed overcurrent protection
Idle application for OEMs due to their high performances and multiple mounting options
Product has been verified by UL and CSA to adhere to the electrical specs stated on the data sheet

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Depth	2.95 in

Weight	167.829 g

Complementary Attributes

Ue Rated Operational Voltage	120/240 V AC, 120 V AC48 V DC

Line Rated Current	15 A

Important Information Attributes

Persona Type Ids	EU, LC, OM
Electrical Connection	slotted box lugs, line side, slotted box lugs, load side
Carbon Footprint Of The Distribution Phase A4	0.1128114754324051, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.022448773162504865, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	1 kg CO2 eq., 1.225339958367604
Local Publishable Date	2026-09-05
Device Type	LV equipment - Low voltage circuit breaker
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2534
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Commercial
Awg Gauge	14 AWG...2 AWG aluminium/copper
Circuit Breaker Type	standard
Mounting Mode	unit mount
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	QOU
Software Version	v6.3.2
Tightening Torque	45-45 lbf.in (14 AWG...2 AWG)
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	0.75 in
Customs Code	8536200040
Halogen Free Status	Halogen free product
Functional Unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd in the Household and Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	32

Persona Type Names	End User, Contractor, Original Equipment Manufacturer
Certificate Agency	IEC, UL Listed, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.2 kg CO2 eq., 0.15863228499916973
Carbon Footprint Of The Manufacturing Phase A1 To A3	1 kg CO2 eq., 1.0878995208450972
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Circuit Breaker Application	HACR rated
Energy Efficiency Optimized	False
Number Of Poles	1P
Product Or Component Type	miniature circuit-breaker
Returnability	Yes
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	0 kg CO2 eq.
Database Version	2026-04
Height Nominal	4.05 in
Nbr. Of Units In Pkg.	1
Short Circuit Current	10 kA
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Halogene Performance	Halogen free product
Toxic Heavy Metal Free	Yes
Carbon Footprint	0
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-09-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2111016EN
Halogen Content Performance	Halogen free product
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2111016EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
