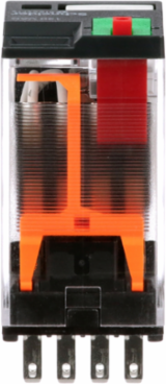

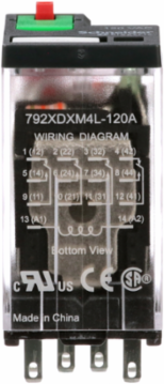

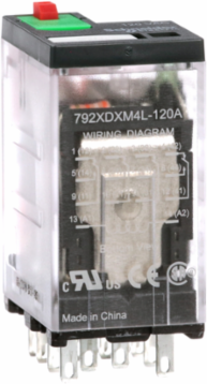

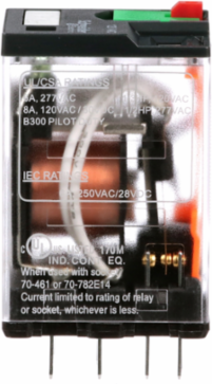

Schneider Electric 792XDXM4L-120A Relay, General Purpose Relays, 4PDT, LED clear cover, lock push button, faston terminals, 6A, 120V AC, 4NC + 4NO

MPN: 792XDXM4L-120A
PPN: SCH-792XDXM4L-120A
UNSPSC: 39122324

$23.11

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The SE Relays 792R series , plug-in general purpose control relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button option. Contacts rated as 6A resistive at 277VAC, motor 1/3hp at 120VAC, 1/2hp at 277VAC with nominal coil voltage 120VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact 4PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.

Features

Used in robust conditions
Durable;open frame construction
With optional blowout magnet for DC switching
2HP motor load rating
Wide range of operating temperature from -30°C to 50°C

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Depth	27.2 mm

Complementary Attributes

Maximum Switching Voltage	300 V UL, 300 V CSA250 V IEC
Maximum Horse Power Rating	0.33 hp 120 V AC0.5 hp 277 V AC

Ie Rated Operational Current	3 A DC-1 (NC) conforming to IEC, 6 A at 277 V AC conforming to UL8 A at 120 V AC conforming to UL8 A at 30 V DC conforming to UL, 6 A AC-1 (NO) conforming to IEC3 A AC-1 (NC) conforming to IEC, 6 A DC-1 (NO) conforming to IEC
Minimum Switching Current	10 mA 17 V

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Dielectric Strength	2000 V AC between coil and contact, 2000 V AC between poles1300 V AC between contacts
Mounting Support	panel, DIN rail
Certificate Agency	UL, CSA, CE
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Standard
Contacts Material	silver with gold flashed contacts
Control Type	lockable test button
Mechanical Durability	10000000 cycles
Power Consumption In Va	0.9-0.9 VA AC
Product Or Component Type	relay
Returnability	Yes
Sustainable Packaging	Yes
Voltage Range	0.8...1.1 Un AC/DC
Height Nominal	40 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Local Signalling	LED, flag
Vibration Resistance	+/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating+/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating3 gn 35-150 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating5 gn 35-150 Hz)not operating
Drop Out Voltage Threshold	>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Local Publishable Date	2026-01-12
Weee Scope	Out
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	4
Function Option Id	STANDARD
Product Kit Identifier	N
Contacts Type And Composition	4 NO + 4 NC
Electrical Durability	100000 cycles resistive
Operating Time	25 ms20 ms at maximum rated voltage
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Legacy
Shock Resistance	10 gn in operation30 gn not operating
Switch Function	4PDT
Connections Terminals	Faston connectors
Width Nominal	21 mm
Customs Code	8536490050

Environment Attributes Main

Ambient Air Temperature For Operation	-40-55 °C, -40-55 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Environmental Disclosure	ENVPEP1402021EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1402021EN

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
