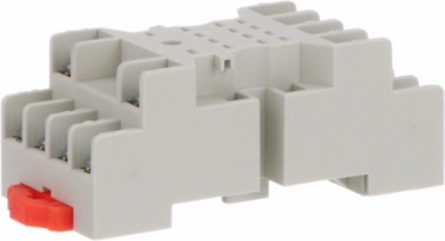

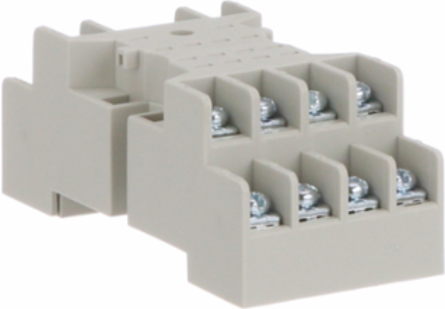

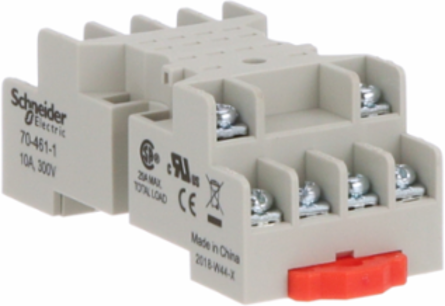

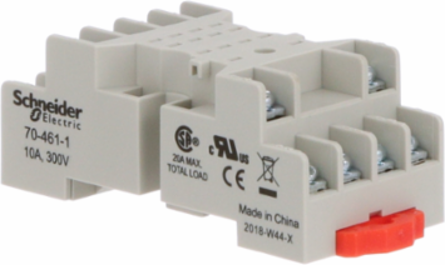

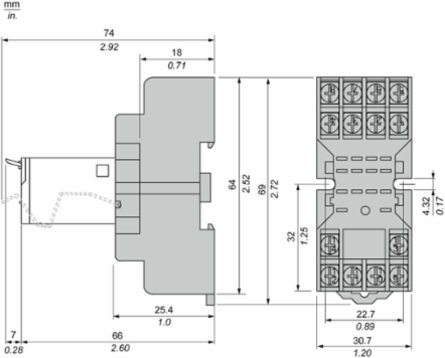

Schneider Electric 70-461-1 Socket, SE Relays, 10A, 14 pins, screw clamp terminals, mixed contact, for 782H / 792 relays
Schneider Electric 70-461-1 Socket, SE Relays, 10A, 14 pins, screw clamp terminals, mixed contact, for 782H / 792 relays
- MPN: 70-461-1
- PPN: SCH-70-461-1
- UNSPSC: 39122335
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$16.55/ EA
Description
Legacy general purpose relay series accessory , optional socket for 782H/792 series relays with 4PDT configuration contacts rated 10A at 300V. Screw clamping connect terminals 14 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.
Features
- Compatible with plug in control relay Schneider Electric
- It is flexibility design for space-saving
- Easy installation and connect to the relay from its socket
- Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs
Specifications
Conformance Attributes
- Product Certifications
- UL, CSA, CE
Complementary Attributes
- Line Rated Current
- 10 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Tightening Torque
- chassis 0.8 N.m, AWG 16...AWG 14, copper, screw < 0.8 N.m
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.1 kg CO2 eq., 0.1181213633
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.6 kg CO2 eq., 0.5965087282
- Connections Terminals
- panel screw clamp terminals, clamping connection capacity:2 x 1.5...2 x 2.5 mm², AWG 16...AWG 14 solid for output, panel screw clamp terminals, clamping connection capacity:2 x 1.5...2 x 2.5 mm², AWG 16...AWG 14 stranded for output, screw clamp terminals
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Contacts Type And Composition
- 4 C/O
- Flame Retardance
- UL94-V0
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Electromechanical Relays
- Shape Of Screw Head
- combination roundhead
- Switch Function
- 4PDT
- Ue Rated Operational Voltage2
- 300 V
- Stocking Flag
- Y
- Pep Code
- ENVPEP2202006EN
- Pep Verification Date
- 2023-01-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; US
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; US
- Global Commercial Status
- Commercialised
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.0174600998, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Connections Terminals3panel screw clamp terminals, clamping connection capacity:2 x 1.5...2 x 2.5 mm², AWG 16...AWG 14 solid for output, panel screw clamp terminals, clamping connection capacity:2 x 1.5...2 x 2.5 mm², AWG 16...AWG 14 stranded for output
Local Publishable Date2026-01-12
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Fixing Modeby screws, M3 panel
Package Weight Lbs50 g
Product Or Component Typesocket
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint0.7 kg CO2 eq.
Medium DescSocket, SE Relays, 10A, 14 pins, screw clamp terminals, mixed contact, for 782H / 792 relays
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionThis socket form a part of a circuit and are used to mount a relay.They provide the electrical interface between the relay itself and the circuit during 20 years and product is adhering to UL standard UL E70550.
Energy Model Manufacturing A1 A3 2Energy model used: Electricity Mix; Production mix; Low voltage; CN
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; US
Contact Terminal Arrangementmixed
Ue Rated Operational Voltage5300 V
Environment Attributes Main
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- China ROHS Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C
- Environmental Disclosure
- ENVPEP2202006EN
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-01-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Product Compatibilityrelay 792XDX, relay 782XDXH
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.7320901912
Ambient Air Temperature For Storage-40-105 °C
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP2202006EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- socket
Range Of ProductHarmony Electromechanical Relays
Specifications
- Depth
- 64 mm
