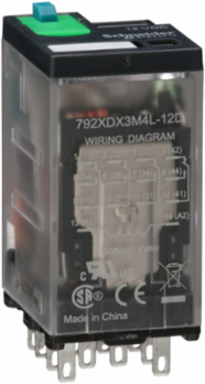

Schneider Electric 792XDX3M4L-12D Power relay, SE Relays, 4PDT, 3A, 12 VDC, cover with locking push button and LED
- MPN: 792XDX3M4L-12D
- PPN: SCH-792XDX3M4L-12D
CAD
$28.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 792R series , plug-in general purpose control relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button option. Contacts rated as 3A at 240 to 277VAC, motor 1/16hp at 120VAC with nominal coil voltage 12VDC , makes relay to be an ideal choice for automation panels and controls. Bifurcated contact 4PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Depth27.2 mm
Complementary Attributes
- Maximum Switching Voltage
- 300 V UL, 300 V CSA250 V IEC
- Minimum Switching Current
- 3 mA 5 V
Maximum Horse Power Rating0.0625 hp 120 V AC
Important Information Attributes
- Dielectric Strength
- 2000 V AC between coil and contact, 2000 V AC between poles1300 V AC between contacts
- Mounting Support
- panel, DIN rail
- Certificate Agency
- UL, CSA, CE
- Drop-out Voltage Threshold
- >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Contacts Material
- gold plated bifurcated silver
- Control Type
- lockable test button
- Mechanical Durability
- 10000000 cycles
- Power Consumption In W
- 0.8-0.8 W DC
- Product Or Component Type
- relay
- Returnability
- No
- Sustainable Packaging
- Yes
- Voltage Range
- 0.8...1.1 Un AC/DC
- Height Nominal
- 40 mm
- Connections - Terminals
- Faston connectors
- Package Weight(Lbs)
- 37 g
- Warranty (In Months)
- 18
Local SignallingLED, flag
Vibration Resistance+/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating+/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating3 gn 35-150 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating5 gn 35-150 Hz)not operating
[Ie] Rated Operational Current1 A at 28 V DC-1 (NC) conforming to IEC, 3 A at 240/277 V AC conforming to UL, 3 A at 120 V AC conforming to UL3 A at 30 V DC conforming to UL, 2 A at 250 V AC-1 (NO) conforming to IEC2 A at 28 V DC-1 (NO) conforming to IEC1 A at 250 V AC-1 (NC) conforming to IEC
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Kit IdentifierN
Contacts Type And Composition4 NO + 4 NC
Electrical Durability100000 cycles resistive
Operating Time25 ms20 ms at maximum rated voltage
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLegacy
Shock Resistance10 gn in operation30 gn not operating
Switch Function4PDT
Pep CodeENVPEP1402021EN
Width Nominal21 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410020
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1402021EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1402021EN
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- relay
Range Of ProductLegacy
Surge Protection And Filtering Attributes
- Surge Withstand Duration
- 1.2/50 µs
Input Attributes
- Input Current
- 3 A
- Input Voltage
- 12 V DC
Input Resistance160 Ohm
