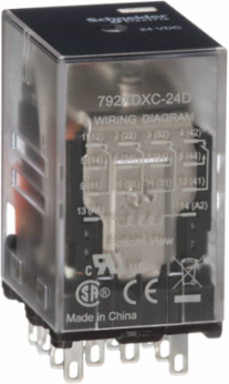

Schneider Electric 792XDXC-24D Power relay, SE Relays, 4PDT, 6A, 24 VDC, clear cover
- MPN: 792XDXC-24D
- PPN: SCH-792XDXC-24D
CAD
$19.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 792R series , plug-in general purpose control relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover. Contacts rated as 6A resistive at 277VAC, motor 1/3hp at 120VAC, 1/2hp at 277VAC with nominal coil voltage 24VDC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact 4PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Depth27.2 mm
Complementary Attributes
- Maximum Switching Voltage
- 300 V UL, 300 V CSA250 V IEC
- Minimum Switching Current
- 10 mA 17 V
Maximum Horse Power Rating0.33 hp 120 V AC0.5 hp 277 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 2000 V AC between coil and contact, 2000 V AC between poles1300 V AC between contacts
- Vibration Resistance
- +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating+/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating3 gn 35-150 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating5 gn 35-150 Hz)not operating
- [Ie] Rated Operational Current
- 3 A DC-1 (NC) conforming to IEC, 6 A at 277 V AC conforming to UL8 A at 120 V AC conforming to UL8 A at 30 V DC conforming to UL, 6 A AC-1 (NO) conforming to IEC3 A AC-1 (NC) conforming to IEC, 6 A DC-1 (NO) conforming to IEC
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Standard
- Contacts Material
- silver with gold flashed contacts
- Electrical Durability
- 100000 cycles resistive
- Mechanical Durability
- 10000000 cycles
- Power Consumption In W
- 0.8-0.8 W DC
- Product Or Component Type
- relay
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Voltage Range
- 0.8...1.1 Un AC/DC
- Height Nominal
- 34.8 mm
- Connections - Terminals
- Faston connectors
- Package Weight(Lbs)
- 0.36 kg
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Mounting Supportpanel, DIN rail
Certificate AgencyUL, CSA, CE
Drop-out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id4
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition4 NO + 4 NC
Local Signallingflag
Operating Time25 ms20 ms at maximum rated voltage
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLegacy
Shock Resistance10 gn in operation30 gn not operating
Switch Function4PDT
Pep CodeENVPEP1402021EN
Width Nominal21 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410050
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1402021EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1402021EN
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- relay
Range Of ProductLegacy
Surge Protection And Filtering Attributes
- Surge Withstand Duration
- 1.2/50 µs
Input Attributes
- Input Current
- 6 A
- Input Voltage
- 24 V DC
Input Resistance640 Ohm
