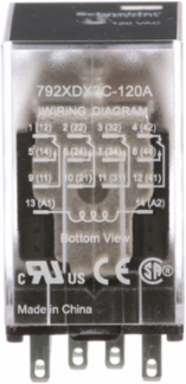

Schneider Electric 792XDX3C-120A Power relay, SE Relays, 4PDT, 3A, 120 VAC, low level bifurcated contacts, clear cover

  • MPN: 792XDX3C-120A
  • PPN: SCH-792XDX3C-120A
  • UNSPSC: 39122324

CAD

$25.74

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The SE Relays 792R series , plug-in general purpose control relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover. Contacts rated as 3A at 240 to 277VAC, motor 1/16hp at 120VAC with nominal coil voltage 120VAC , makes relay to be an ideal choice for automation panels and controls. Bifurcated contact 4PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.

Features

  • Switching current is ideal choice for various automation panels and controls.
  • DPDT and 4PDT contact options allows simultaneous control of 2 or 4 separate circuits.
  • Socket-mounting option simplifies installation and maintenance.
  • Mechanical flag indicator displays the status of an unpowered relay during testing or operation.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginChina
Depth27.2 mm

Complementary Attributes

Maximum Switching Voltage300 V UL, 300 V CSA250 V IEC
Maximum Horse Power Rating0.0625 hp 120 V AC
Ie Rated Operational Current1 A DC-1 (NC) conforming to IEC, 3 A at 240/277 V AC conforming to UL, 3 A at 120 V AC conforming to UL3 A at 30 V DC conforming to UL2 A AC-1 (NO) conforming to IEC, 2 A DC-1 (NO) conforming to IEC1 A AC-1 (NC) conforming to IEC
Minimum Switching Current3 mA 5 V

Important Information Attributes

Dielectric Strength2000 V AC between coil and contact, 2000 V AC between poles1300 V AC between contacts
Vibration Resistance+/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating+/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating3 gn 35-150 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating5 gn 35-150 Hz)not operating
Drop Out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Local Publishable Date2026-01-12
Weee ScopeOut
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Contacts Materialgold plated bifurcated silver
Electrical Durability100000 cycles resistive
Mechanical Durability10000000 cycles
Power Consumption In Va0.9-0.9 VA AC
Product Or Component Typerelay
ReturnabilityYes
Sustainable PackagingYes
Voltage Range0.8...1.1 Un AC/DC
Height Nominal34.8 mm
Nbr. Of Units In Pkg.1
Warranty In Months18
Mounting Supportpanel, DIN rail
Certificate AgencyUL, CSA, CE
Local Data StatusPublishable
Return IndicatorY
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Kit IdentifierN
Contacts Type And Composition4 NO + 4 NC
Local Signallingflag
Operating Time25 ms20 ms at maximum rated voltage
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLegacy
Shock Resistance10 gn in operation30 gn not operating
Switch Function4PDT
Connections TerminalsFaston connectors
Width Nominal21 mm
Customs Code8536490050

Environment Attributes Main

Ambient Air Temperature For Operation-40-55 °C, -40-55 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Environmental DisclosureENVPEP1402021EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1402021EN
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold

General Attributes

Product Or Component Typerelay
Range Of ProductLegacy

Surge Protection And Filtering Attributes

Surge Withstand Duration1.2/50 µs

Input Attributes

Input Current3 A
Input Voltage120 V AC
Input Resistance3630 Ohm
Power relay, SE Relays, 4PDT, 3A, 120 VAC, low level bifurcated contacts, clear cover
