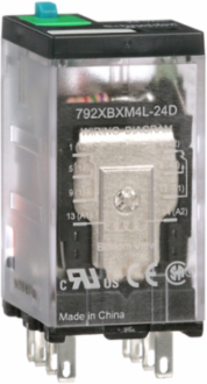

Schneider Electric 792XBXM4L-24D Power relay, SE Relays, DPDT, 12A, 24 VDC, cover with locking push button and LED
- MPN: 792XBXM4L-24D
- PPN: SCH-792XBXM4L-24D
CAD
$19.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 792R series , plug-in general purpose control relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button option. Contacts rated as 12A resistive at 277VAC, motor 1/2hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VDC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Singapore
Depth27.2 mm
Complementary Attributes
- Maximum Switching Voltage
- 300 V UL, 300 V CSA250 V IEC
- Minimum Switching Current
- 10 mA 17 V
Maximum Horse Power Rating0.5 hp 120 V AC1 hp 277 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 2000 V AC between coil and contact, 2000 V AC between poles1300 V AC between contacts
- Mounting Support
- panel, DIN rail
- Certificate Agency
- UL, CSA, CE
- Drop-out Voltage Threshold
- >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 4
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- 2 NO + 2 NC
- Electrical Durability
- 100000 cycles resistive
- Operating Time
- 25 ms20 ms at maximum rated voltage
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Legacy
- Shock Resistance
- 10 gn in operation30 gn not operating
- Switch Function
- DPDT
- Pep Code
- ENVPEP1402021EN
- Width Nominal
- 21 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536410050
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local SignallingLED, flag
Vibration Resistance+/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating+/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating, +/- 1 mm 10-35 Hz)not operating3 gn 35-150 Hz)operating, +/- 1 mm 10-35 Hz)operating, +/- 1 mm 10-35 Hz)operating5 gn 35-150 Hz)not operating
[Ie] Rated Operational Current6 A DC-1 (NC) conforming to IEC, 12 A at 277 V AC conforming to UL, 12 A at 120 V AC conforming to UL12 A at 30 V DC conforming to UL, 12 A AC-1 (NO) conforming to IEC6 A AC-1 (NC) conforming to IEC, 12 A DC-1 (NO) conforming to IEC
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Contacts Materialsilver with gold flashed contacts
Control Typelockable test button
Mechanical Durability10000000 cycles
Power Consumption In W0.8-0.8 W DC
Product Or Component Typerelay
ReturnabilityYes
Sustainable PackagingYes
Voltage Range0.8...1.1 Un AC/DC
Height Nominal40 mm
Connections - TerminalsFaston connectors
Package Weight(Lbs)37 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1402021EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1402021EN
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- relay
Range Of ProductLegacy
Surge Protection And Filtering Attributes
- Surge Withstand Duration
- 1.2/50 µs
Input Attributes
- Input Current
- 12 A
- Input Voltage
- 24 V DC
Input Resistance640 Ohm
